M30 Inductive Proximity Sensor 15mm | KL-LM30-3015N1 | KALEN
M30 non-flush inductive proximity sensor with 15 mm sensing distance for reliable non-contact metal detection. Available with NPN/PNP output and NO/NC switching options for industrial automation applications.
PRODUCT OVERVIEW
Product Overview
KL-LM30-3015N1 is an M30 non-flush inductive proximity sensor designed for reliable non-contact detection of metal objects in industrial automation, machinery and production equipment.
With a 15 mm sensing distance and 10–30 VDC operating voltage, this cylindrical proximity sensor provides stable detection performance with NPN/PNP output options and NO/NC switching configurations for different industrial control systems.
The M30 threaded stainless steel housing design offers excellent mechanical strength and durability, making it suitable for demanding industrial environments where long sensing distance and reliable operation are required.
Technical Advantages
The KL-LM30-3015N1 M30 inductive proximity sensor features non-contact metal detection, fast response time and protection against reverse polarity for reliable machine automation applications.
Specifications
The KL-LM30-3015N1 M30 inductive proximity sensor is available with NPN or PNP output options and NO/NC switching functions.
It supports 10–30 VDC power supply and provides stable detection performance for metal targets in industrial automation systems.
TECHNICAL DATA
Technical Specifications
- Housing Size
- M30
- Housing Type
- Cylindrical
- Mounting Type
- Non-Flush
- Sensing Distance
- 15 mm
- Output Type
- NPN, PNP
- Switching Function
- NC, NO
- Supply Voltage
- 10-30 VDC
- Connection Type
- Cable
- Detection Target
- Metal
- Response Frequency
- 400 Hz
- Load Current
- ≤ 200 mA
- Current Consumption
- ≤ 10 mA
- Residual Voltage
- ≤ 1.5 V
- Operating Temperature
- -25°C to +70°C
- Protection Circuit
- Reverse polarity protection
- Housing / Thread Dimensions
- M30 cylindrical threaded housing

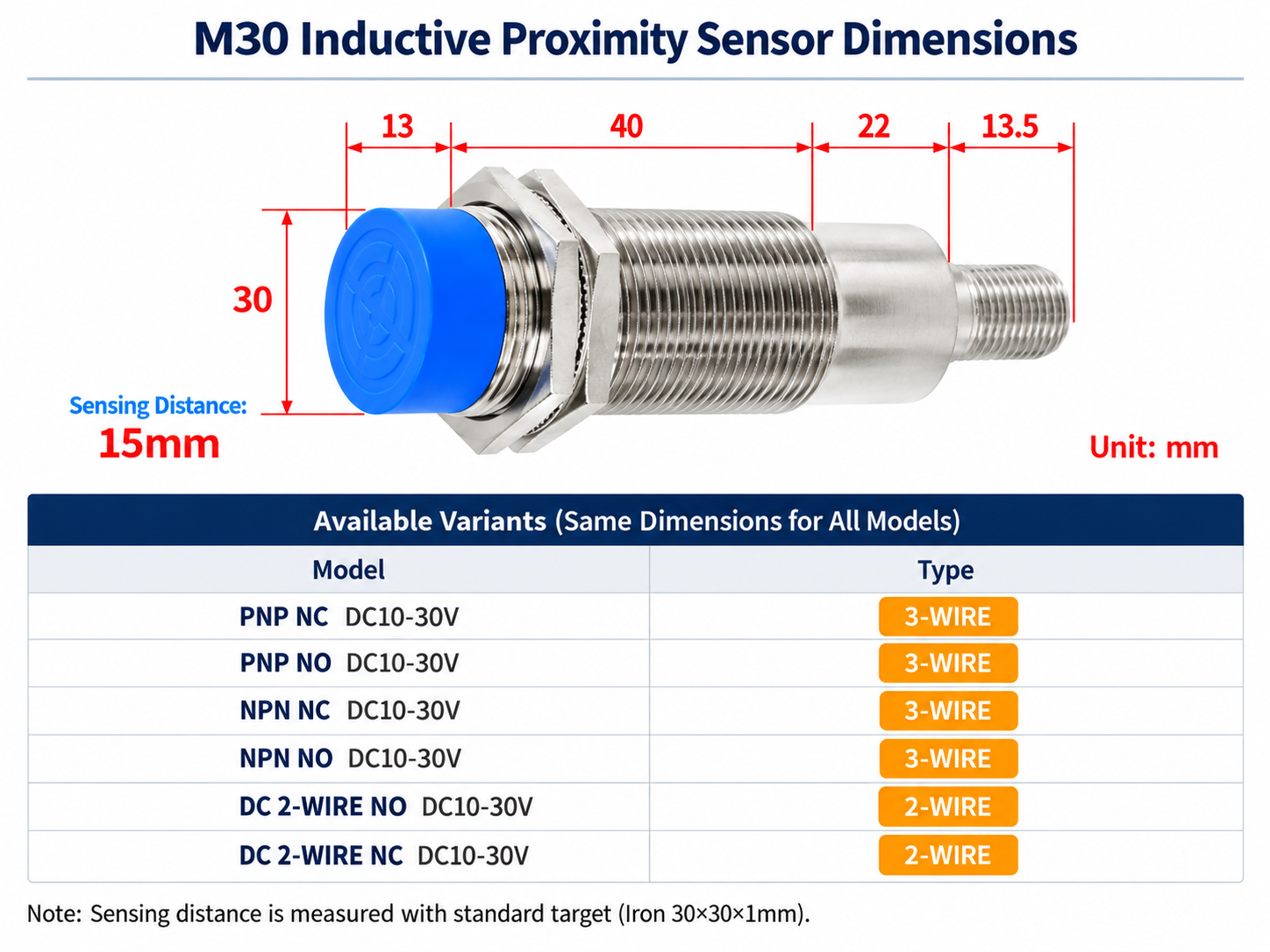

ENGINEERING DRAWING
Dimensions & Mechanical Drawing

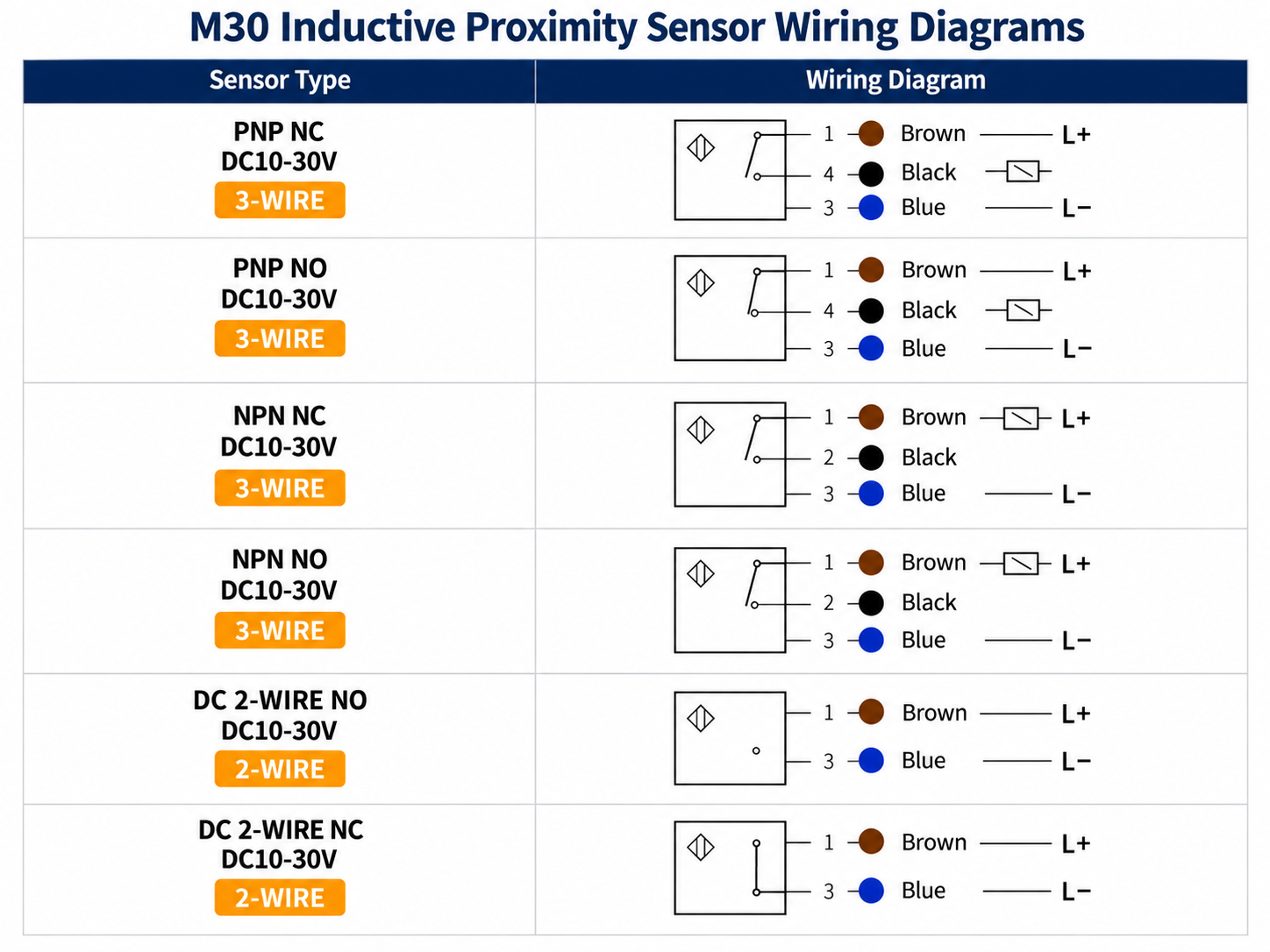

ELECTRICAL CONNECTION
Wiring & Output Configuration
APPLICATIONS
Applications
Suitable for machine position detection, metal part presence detection, conveyor systems, assembly equipment, packaging machinery and factory automation.
INSTALLATION
Installation Notes
Non-flush mounting. Keep sufficient clearance around the sensing face and confirm the correct output and wiring configuration before installation.
OEM / ODM SUPPORT
OEM & Inquiry
Contact KALEN for model selection, sample evaluation, output configuration and OEM/ODM requirements.
