M8 Inductive Proximity Sensor 2mm | KL-LM08-3002P1 | KALEN
M8 non-flush inductive proximity sensor with 2 mm sensing distance for non-contact metal detection. Available with NPN/PNP output and NO/NC switching options for industrial automation applications.
PRODUCT OVERVIEW
Product Overview
KL-LM08-3002P1 M8 Inductive Proximity Sensor is a compact non-flush inductive proximity sensor designed for reliable non-contact detection of metal objects in industrial automation, machinery and production equipment.
With a 2 mm sensing distance and 10–30 VDC operating voltage, this M8 proximity sensor provides stable metal detection with NPN/PNP output options and NO/NC switching configurations for different industrial control systems.
The compact M8 threaded cylindrical housing design offers easy installation, excellent mechanical strength and reliable performance. It is suitable for applications where limited installation space and accurate metal detection are required.
Technical Advantages
The KL-LM08-3002P1 M8 inductive proximity sensor features:
- Compact M8 threaded cylindrical design
- Non-contact metal detection without mechanical wear
- Stable sensing performance for industrial automation
- Fast response time and high detection reliability
- Available with NPN or PNP output configurations
- NO and NC switching functions available
- Suitable for compact machinery and control systems
TECHNICAL DATA
Technical Specifications
- Housing Size
- M8
- Housing Type
- Cylindrical
- Mounting Type
- Non-Flush
- Sensing Distance
- 2 mm
- Output Type
- NPN, PNP
- Switching Function
- NC, NO
- Supply Voltage
- 10-30 VDC
- Connection Type
- Cable
- Detection Target
- Metal
ENGINEERING DRAWING

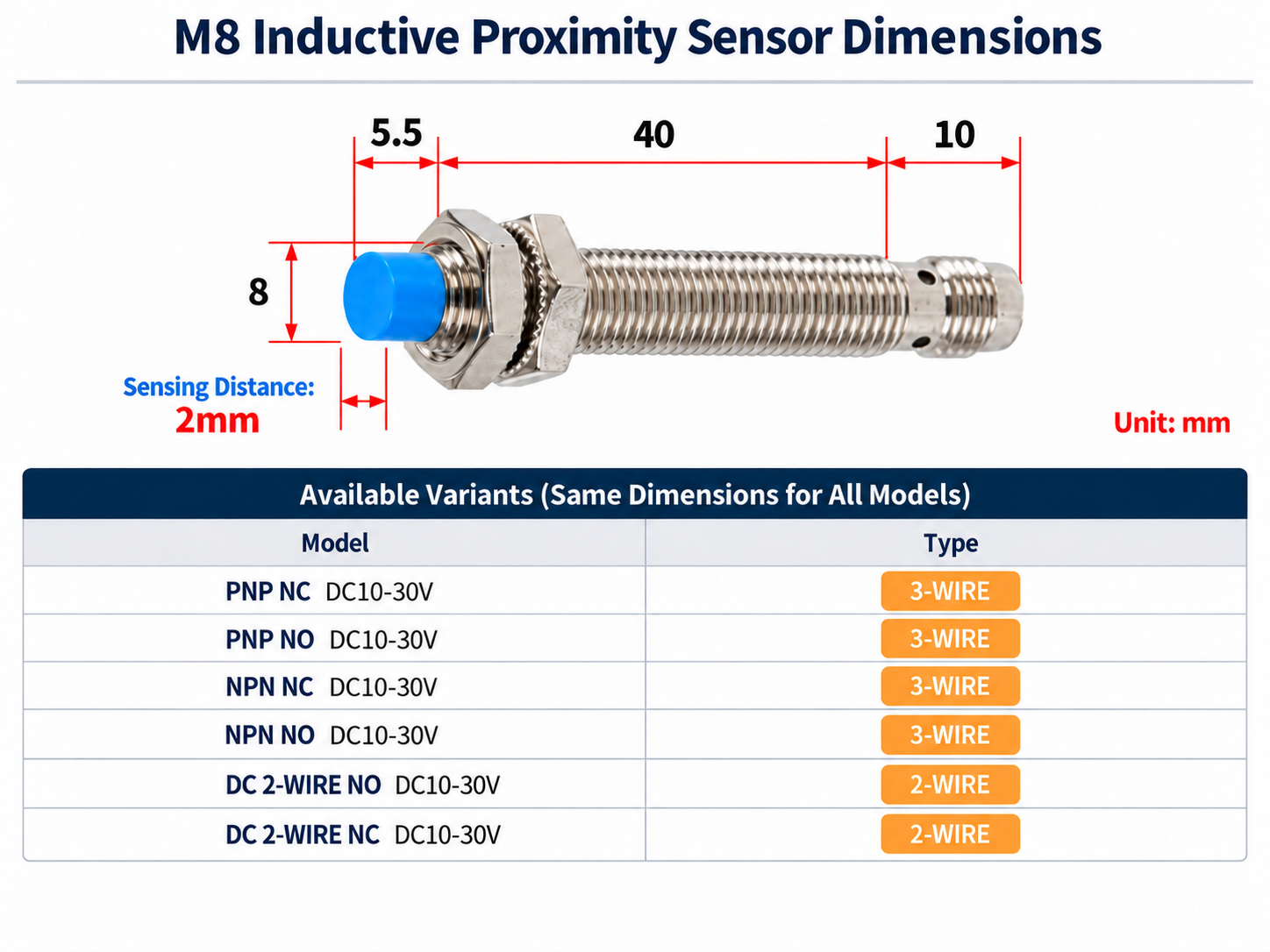

Dimensions & Mechanical Drawing
ELECTRICAL CONNECTION
Wiring & Output Configuration
APPLICATIONS
Applications
The M8 inductive proximity sensor is widely used for:
- Machine position detection
- Small metal part detection
- Assembly equipment
- Conveyor systems
- Packaging machinery
- Factory automation systems
- Industrial control equipment
OEM / ODM SUPPORT
OEM & Inquiry
KALEN provides inductive proximity sensors for industrial automation applications.
Contact us for:
- Model selection support
- Sample evaluation
- Customized sensor requirements
- OEM/ODM cooperation
