M18 Inductive Proximity Sensor 8mm | KL-LM18-3008N1 | KALEN
M18 non-flush inductive proximity sensor with 8 mm sensing distance for reliable non-contact metal detection. Available with NPN/PNP output and NO/NC switching options for industrial automation applications.
PRODUCT OVERVIEW
Product Overview
KALEN KL-LM18-3008N1 is an M18 cylindrical inductive proximity sensor designed for reliable non-contact detection of metal objects in industrial automation applications.
With an 8mm rated sensing distance, stainless steel housing and stable switching performance, this M18 proximity sensor provides accurate metal detection for machinery, conveyors and automatic positioning systems.
The sensor supports NPN and PNP output configurations with NO/NC switching functions and 10-30V DC operating voltage. It is suitable for machine builders, equipment manufacturers and industrial distributors requiring reliable proximity sensing solutions.
Technical Advantages
The KL-LM18-3008N1 M18 inductive proximity sensor offers stable detection performance in demanding industrial environments.
The stainless steel cylindrical housing provides durability and reliable installation. The sensor design supports continuous operation in automation equipment where accurate metal detection and long service life are required.
Frequently Asked Questions
What is the sensing distance of KL-LM18-3008N1?
The KL-LM18-3008N1 provides an 8mm rated sensing distance for standard metal target detection.
Is this M18 inductive proximity sensor available with NPN and PNP output?
Yes. KALEN provides NPN and PNP output options with different switching configurations according to application requirements.
Where can this proximity sensor be used?
This M18 proximity sensor is widely used in industrial automation, conveyor equipment, packaging machines, assembly systems and metal detection applications.
TECHNICAL DATA
Technical Specifications
- Housing Size
- M18
- Housing Type
- Cylindrical
- Mounting Type
- Non-Flush
- Sensing Distance
- 8 mm
- Output Type
- NPN, PNP
- Switching Function
- NC, NO
- Supply Voltage
- 10-30 VDC
- Connection Type
- Cable
- Detection Target
- Metal
- Response Frequency
- 400 Hz
- Load Current
- ≤ 200 mA
- Current Consumption
- ≤ 10 mA
- Residual Voltage
- ≤ 1.5 V
- Operating Temperature
- -25°C to +70°C
- Protection Circuit
- Reverse polarity protection
- Housing / Thread Dimensions
- M18 cylindrical threaded housing

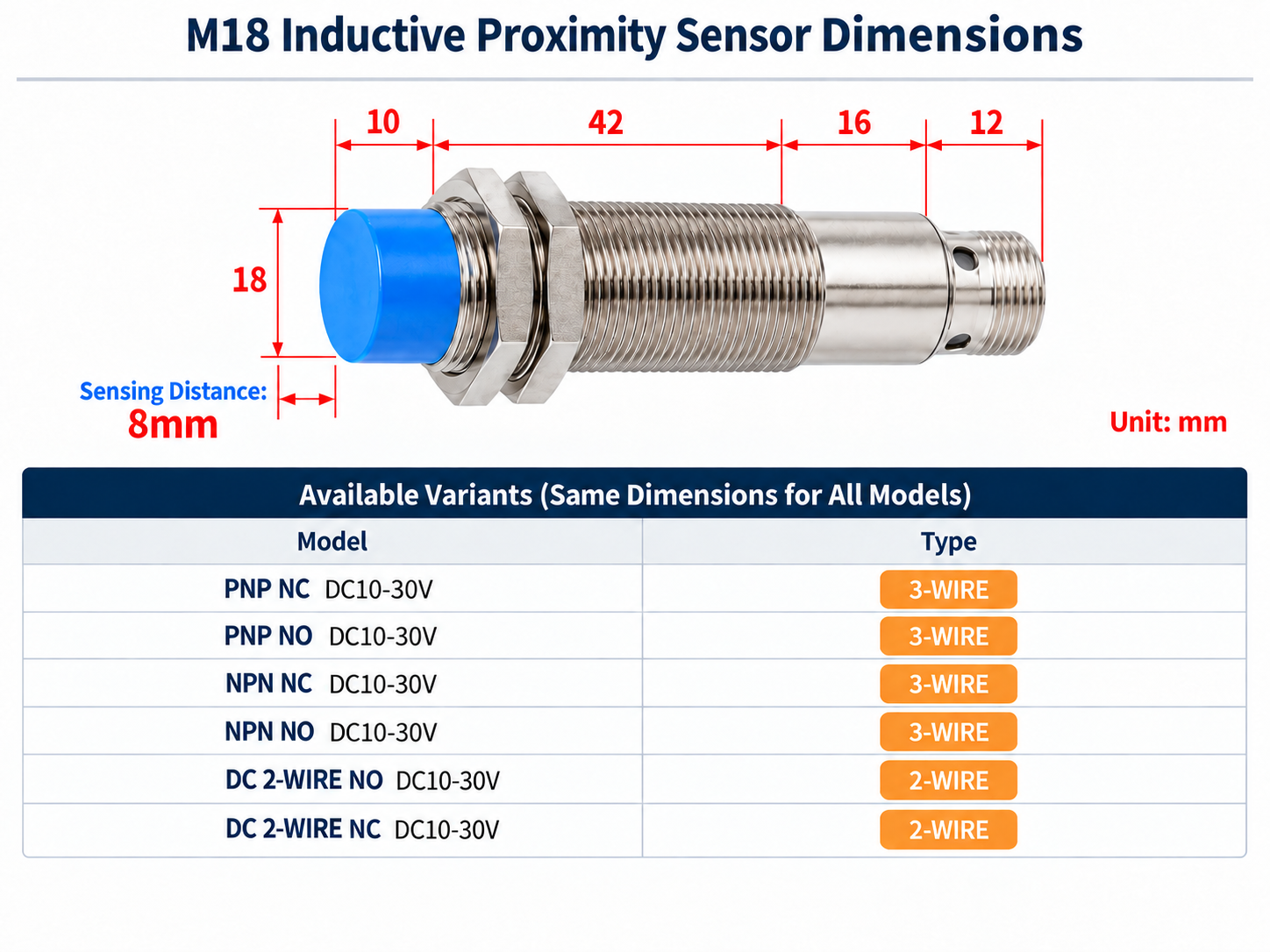

ENGINEERING DRAWING
Dimensions & Mechanical Drawing

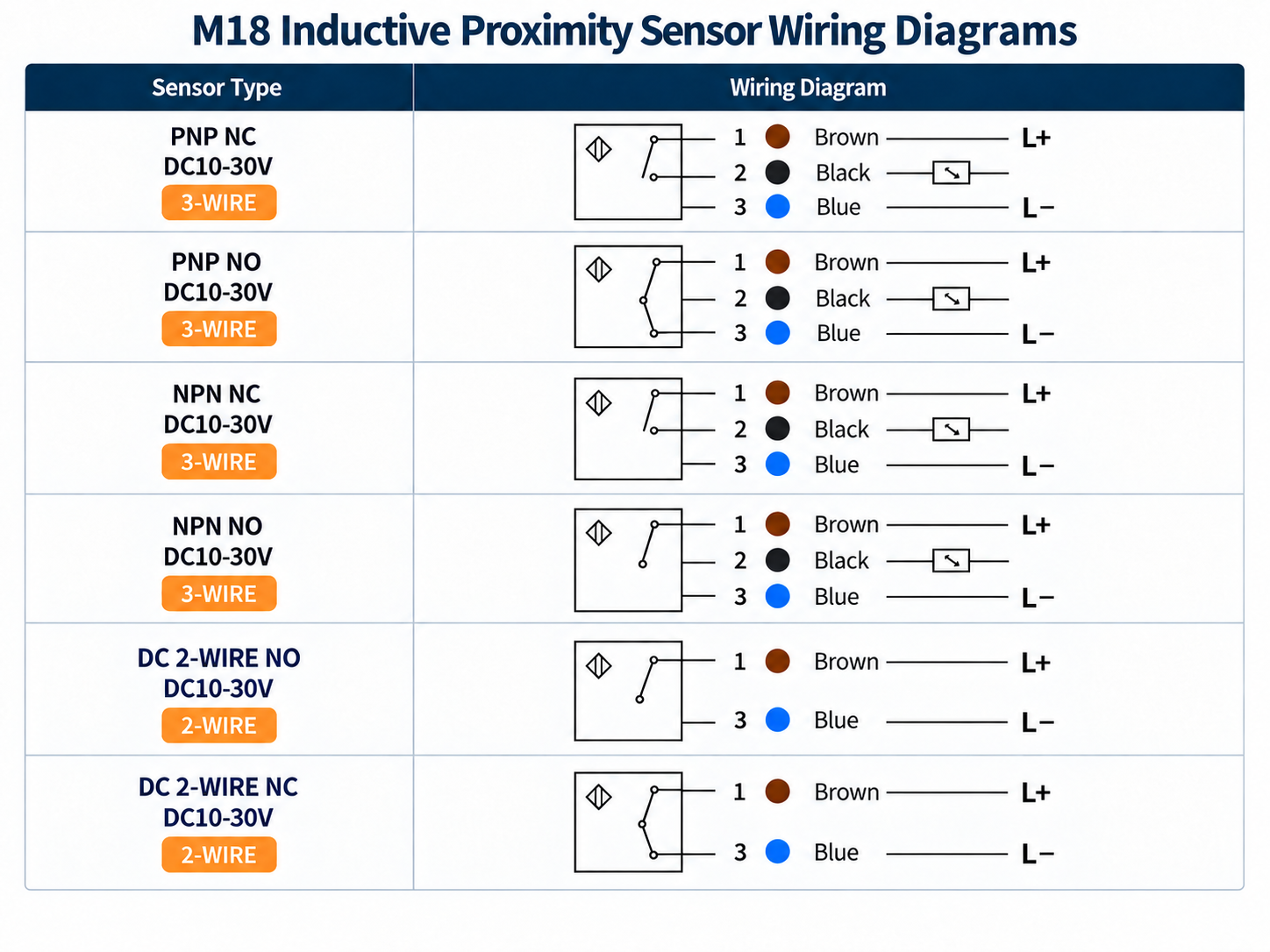

ELECTRICAL CONNECTION
Wiring & Output Configuration
APPLICATIONS
Applications
The KL-LM18-3008N1 inductive proximity sensor is commonly used in:
- Industrial automation equipment
- Conveyor systems
- Packaging machinery
- Machine tools
- Assembly lines
- Metal part detection
- Position control systems
- Factory automation applications
INSTALLATION
Installation Notes
Non-flush mounting. Keep sufficient clearance around the sensing face and confirm the correct output and wiring configuration before installation.
OEM / ODM SUPPORT
OEM & Inquiry
KALEN Automation provides inductive proximity sensor solutions for OEM and ODM customers worldwide.
We support model selection, sample testing, customized cable length, connector options and sensor configurations according to customer requirements.
