Rectangular & Ring-Type Inductive Proximity Sensors

KALEN Automation offers rectangular, compact, round-face and ring-type inductive proximity sensor housing styles for industrial metal detection. Choose a housing that fits your mounting space, target movement and machine layout. For rectangular or round-face sensors, provide the metal target material, dimensions and required sensing distance. For ring-type sensors, share the required bore clearance, metal part dimensions and direction of passage. We can review different sensing distances, NPN / PNP outputs, NO / NC switching, 3-wire / 4-wire configurations, cable or connector connections and DC supply requirements where supported by the selected model. Discuss positioning, metal component presence checks, packaging machinery or part counting with your installation drawing and motion speed. Detection performance and available configurations must be confirmed for the exact model and target. OEM/ODM enquiries are welcome for machine builders and distributors. Send your product photo or reference model, specifications and quantity so we can recommend a suitable sensor and discuss customization scope.

REQUEST A QUOTE

Explore the range

Explore 16 housing styles. Contact us to confirm sensing distance, ring bore, mounting dimensions and electrical specifications for your application.

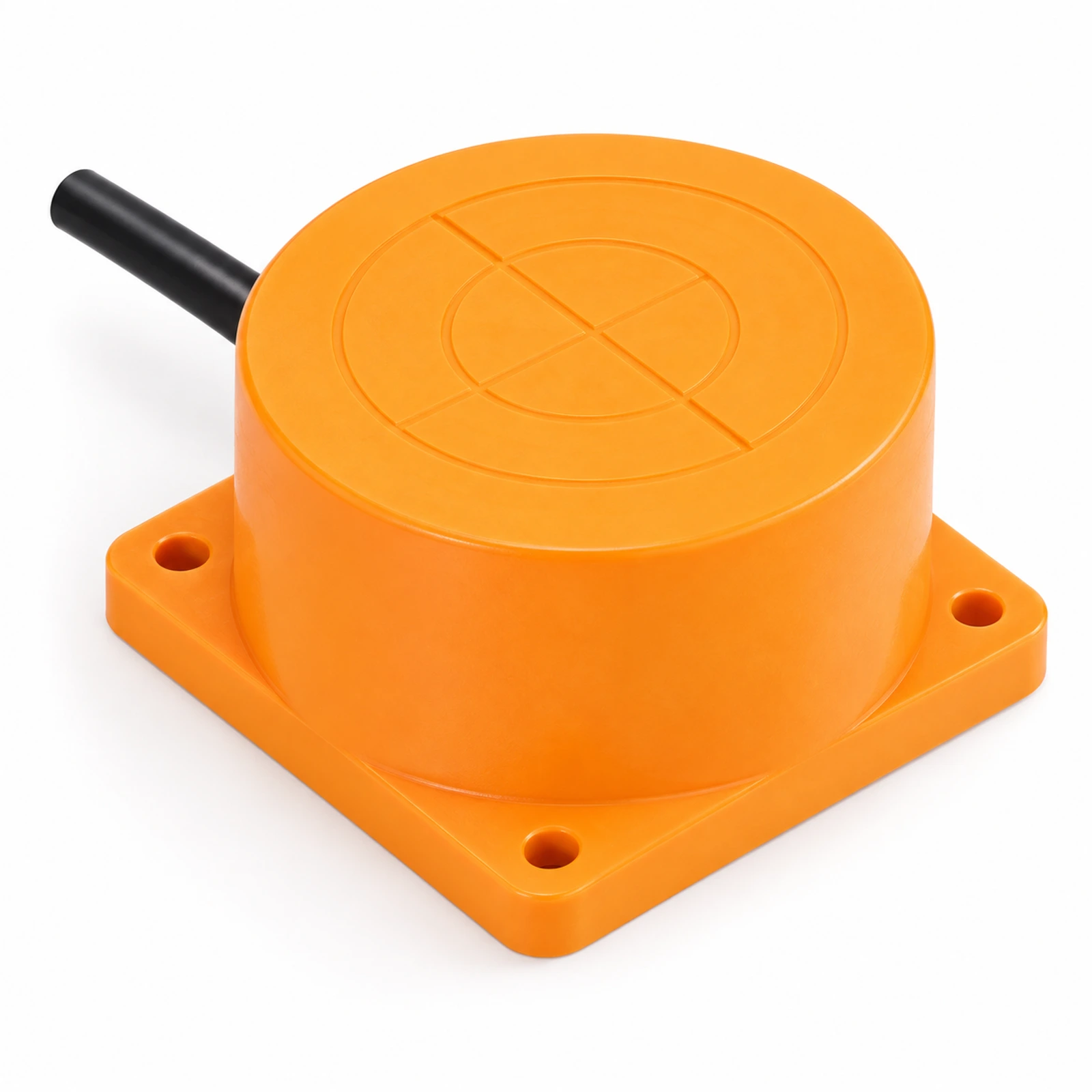

Large Round-Face Inductive Proximity Sensor

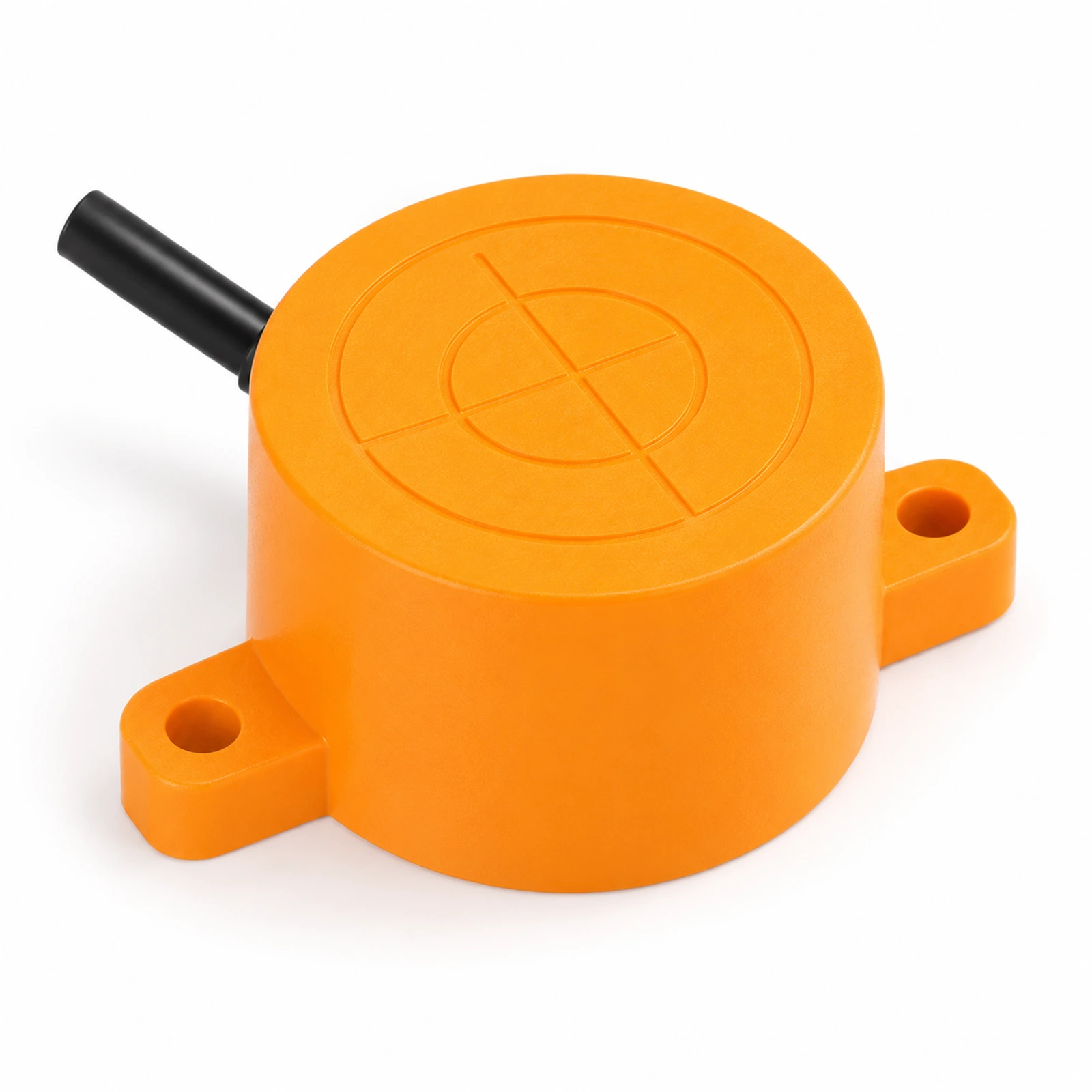

Small Round-Face Inductive Proximity Sensor

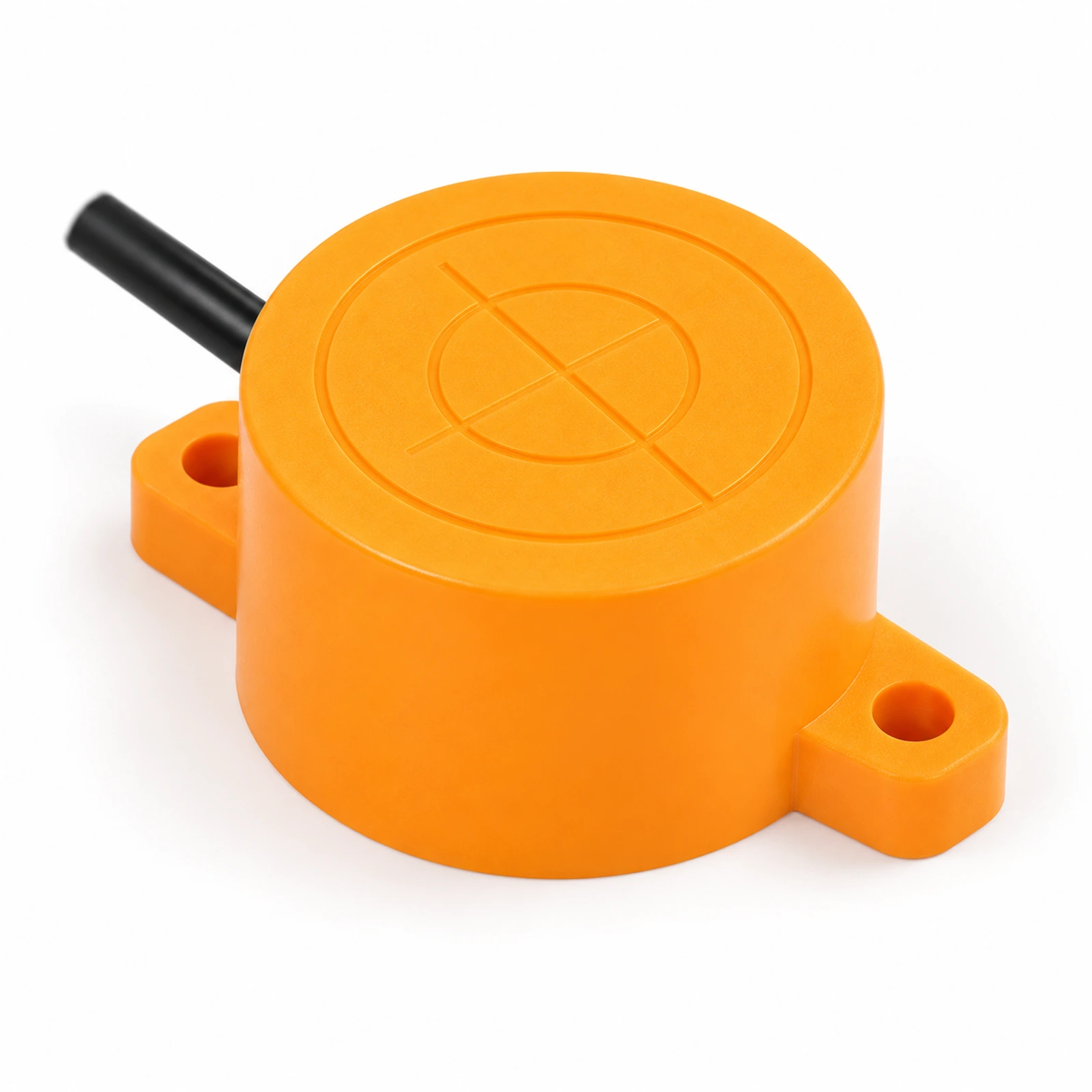

Medium Round-Face Inductive Proximity Sensor

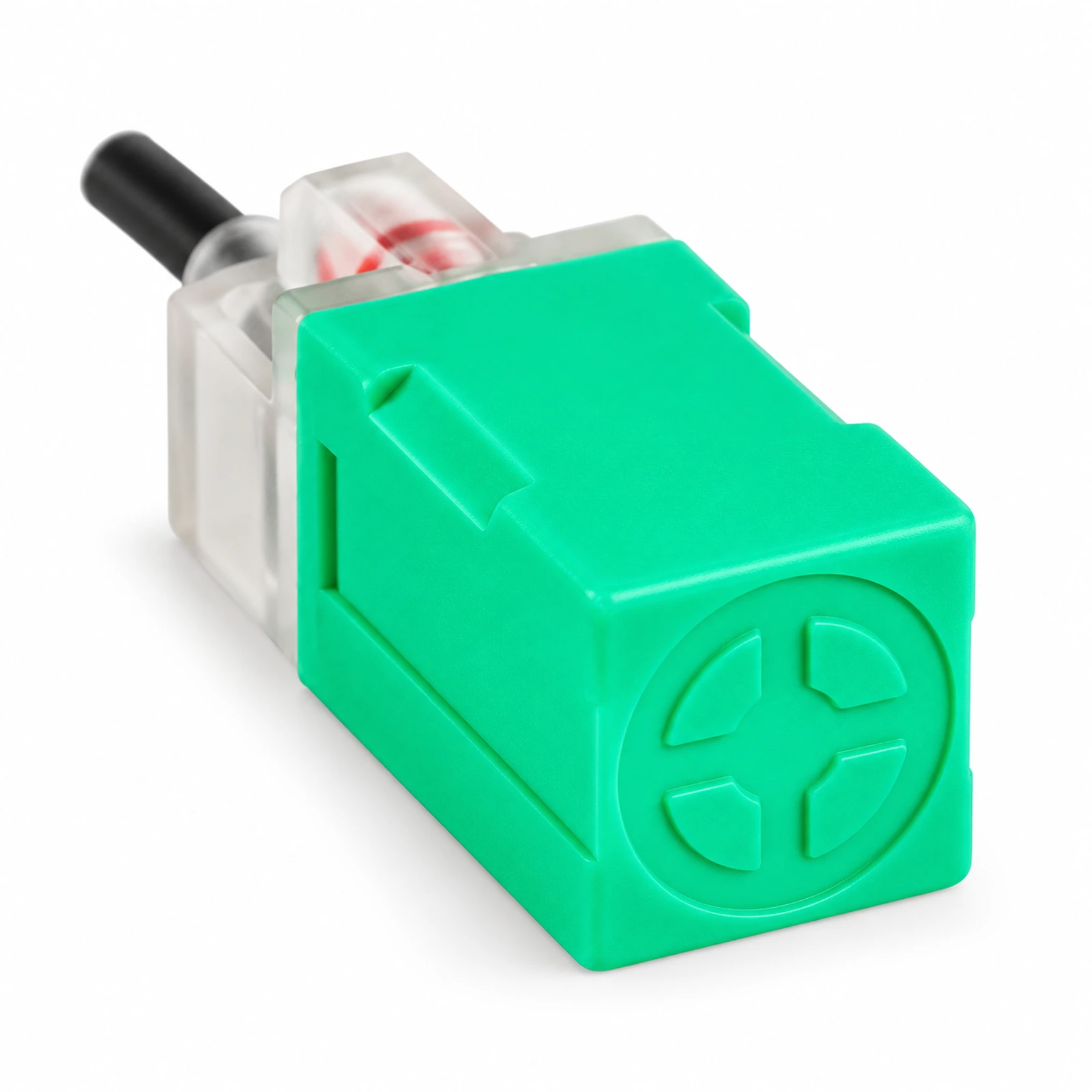

Rectangular Inductive Proximity Sensor – Green Housing

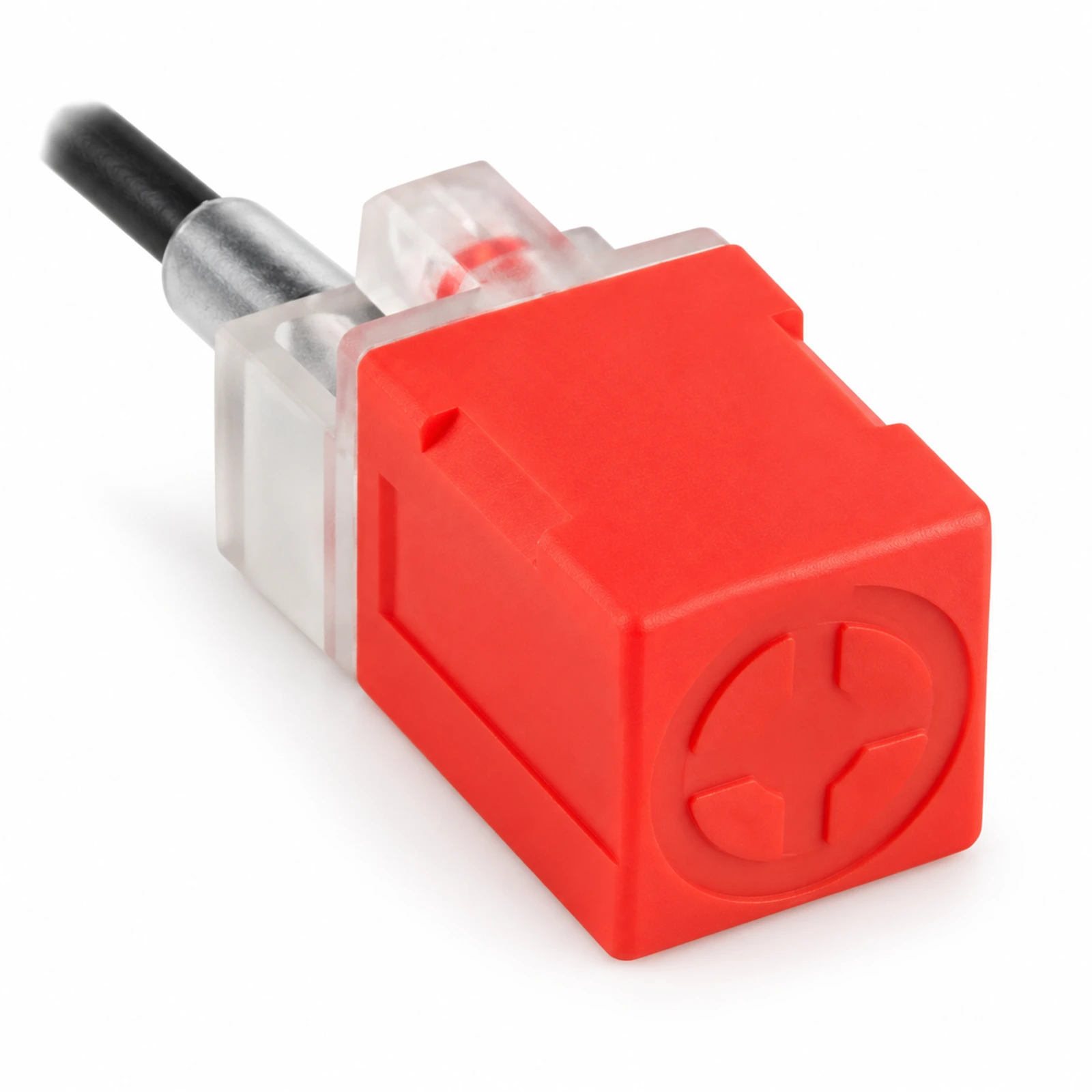

Rectangular Inductive Proximity Sensor – Red Housing

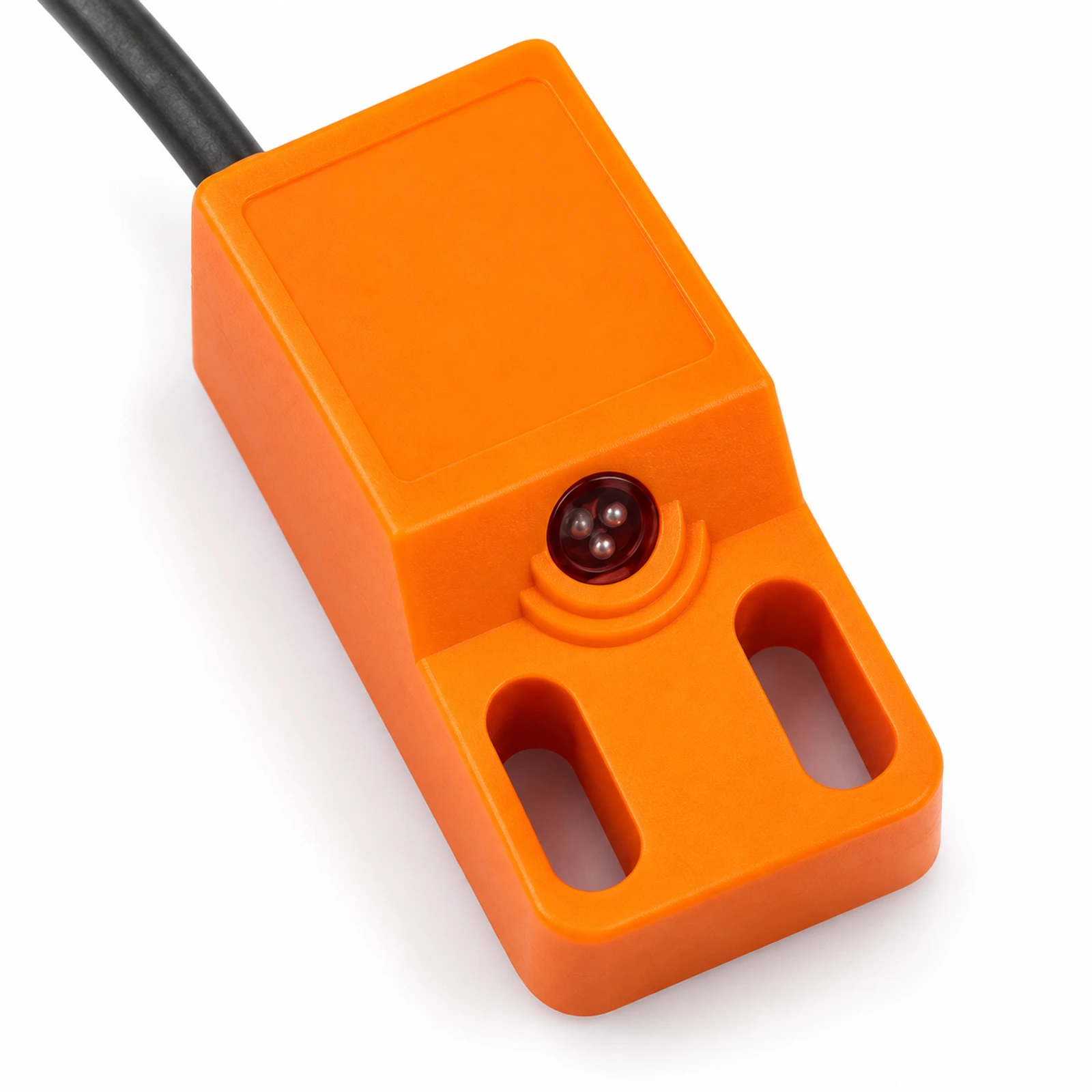

Compact Inductive Proximity Sensor – Orange Housing

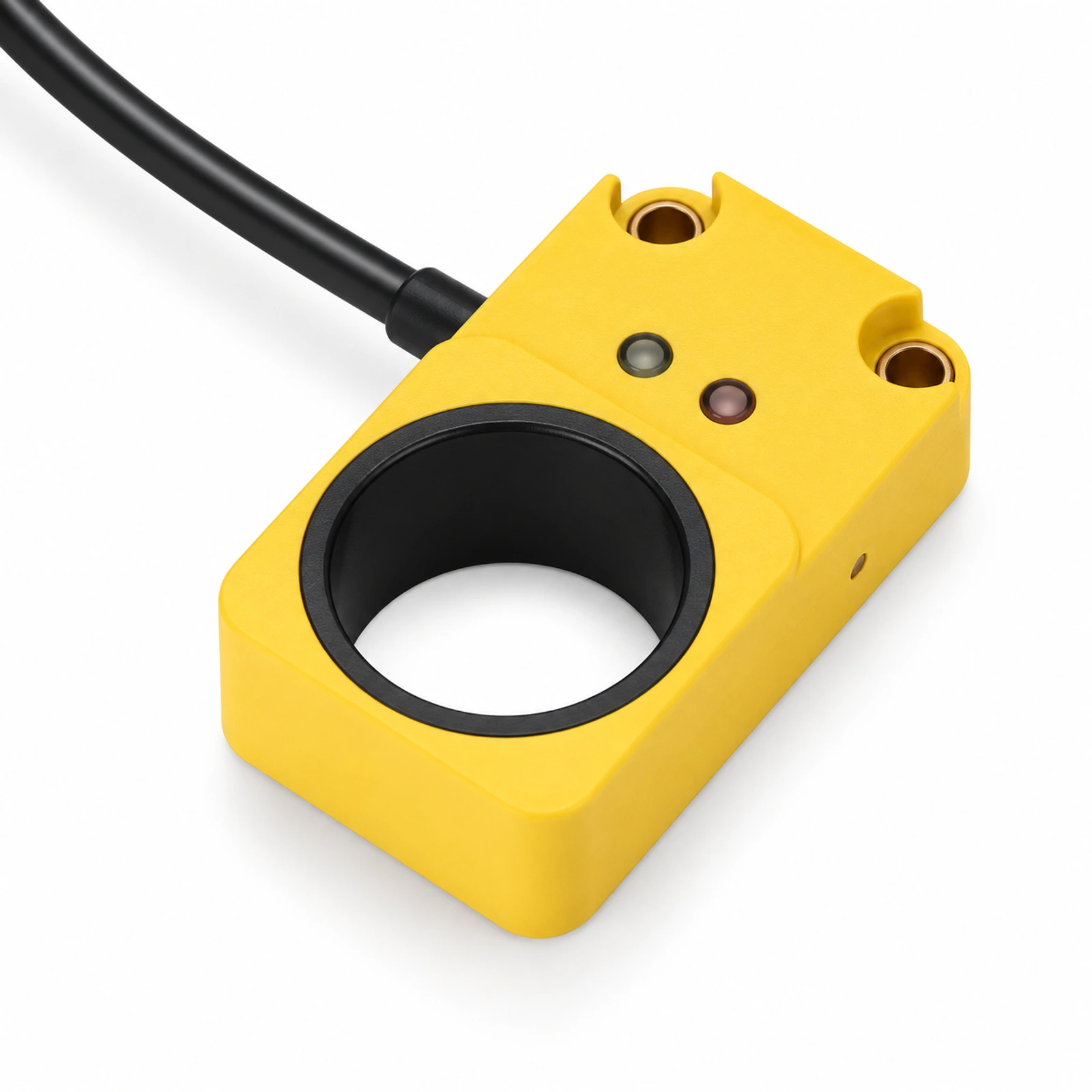

Ring-Type Inductive Proximity Sensor – Yellow Housing

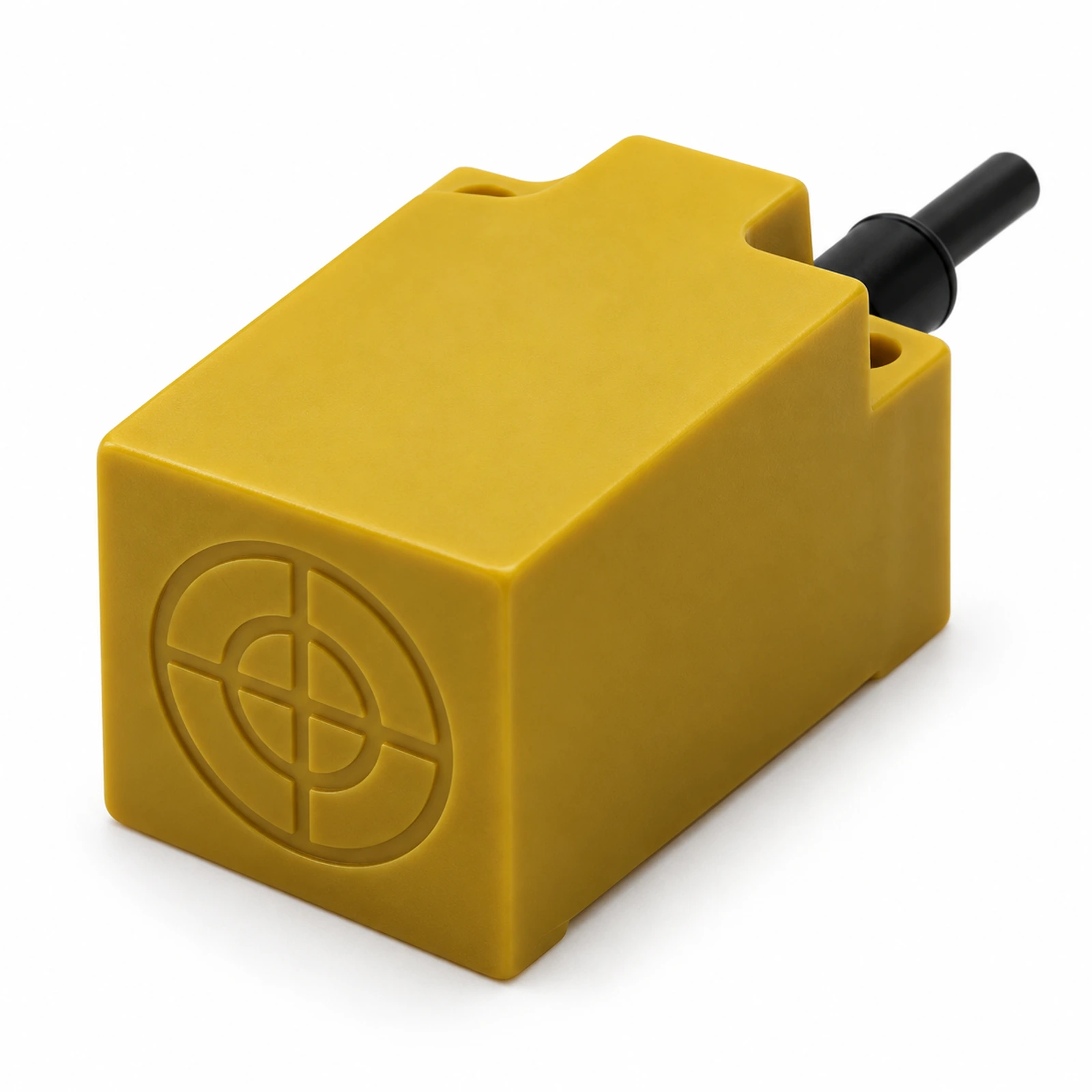

Medium Square Inductive Proximity Sensor

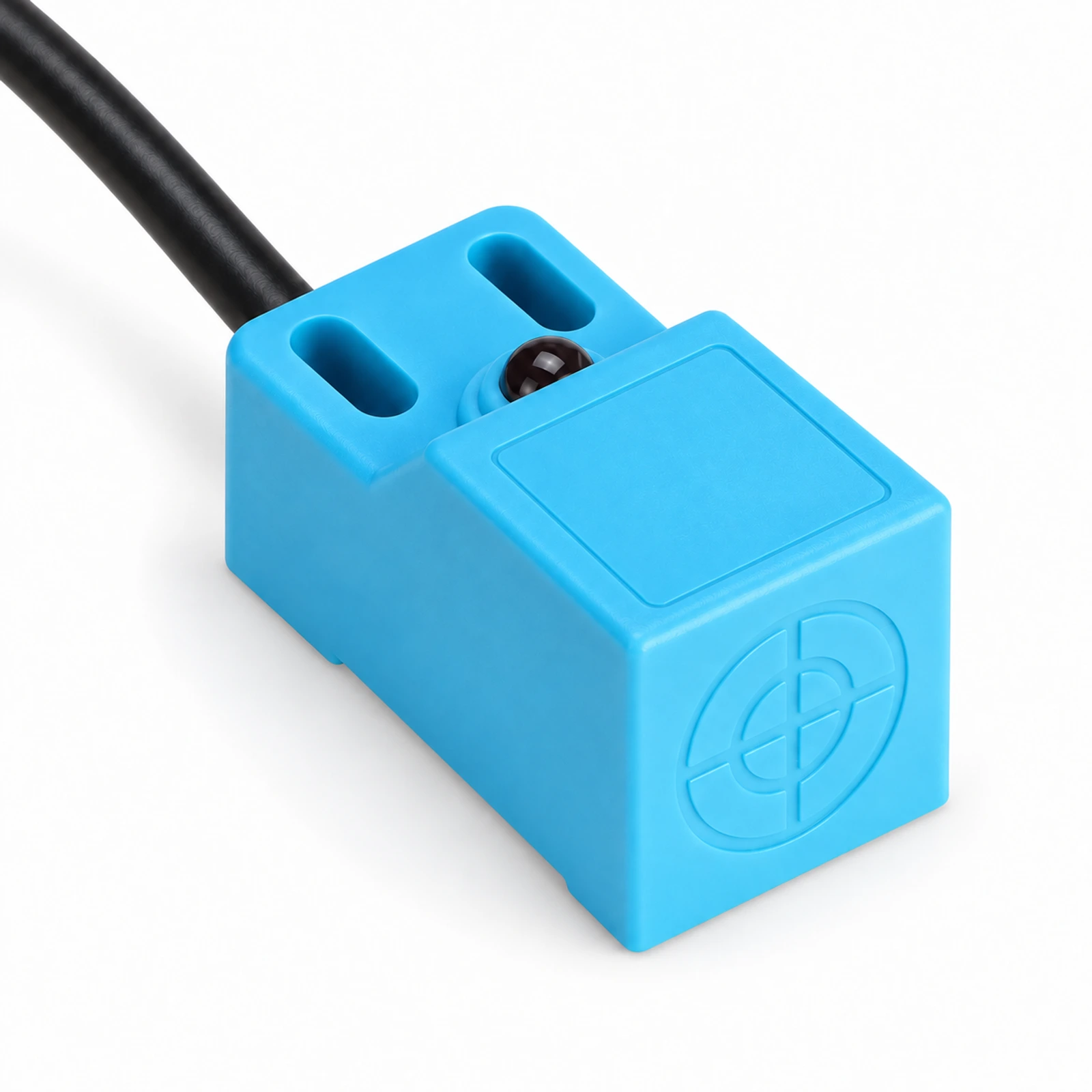

Square Inductive Proximity Sensor – Blue Housing

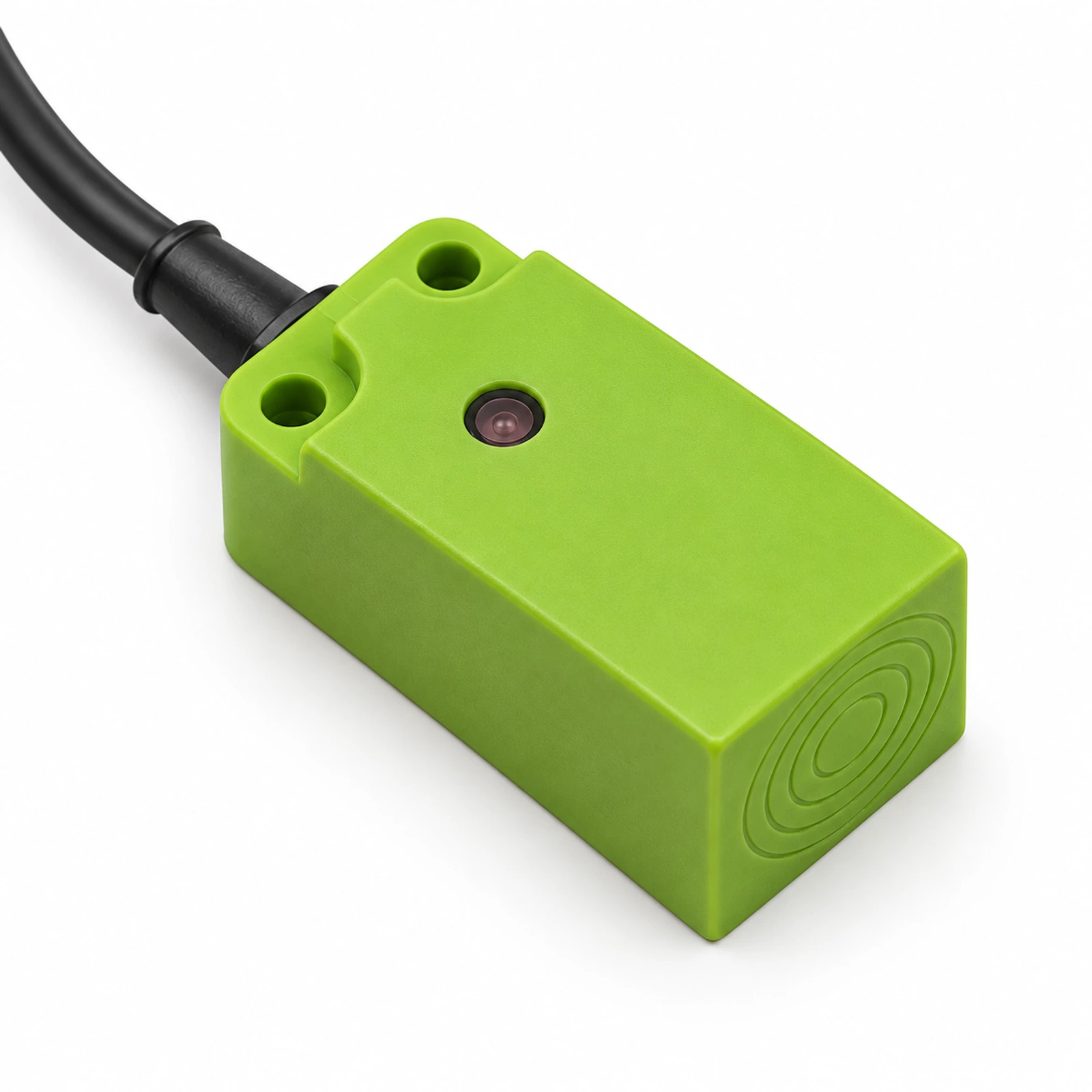

Compact Inductive Proximity Sensor – Green Housing

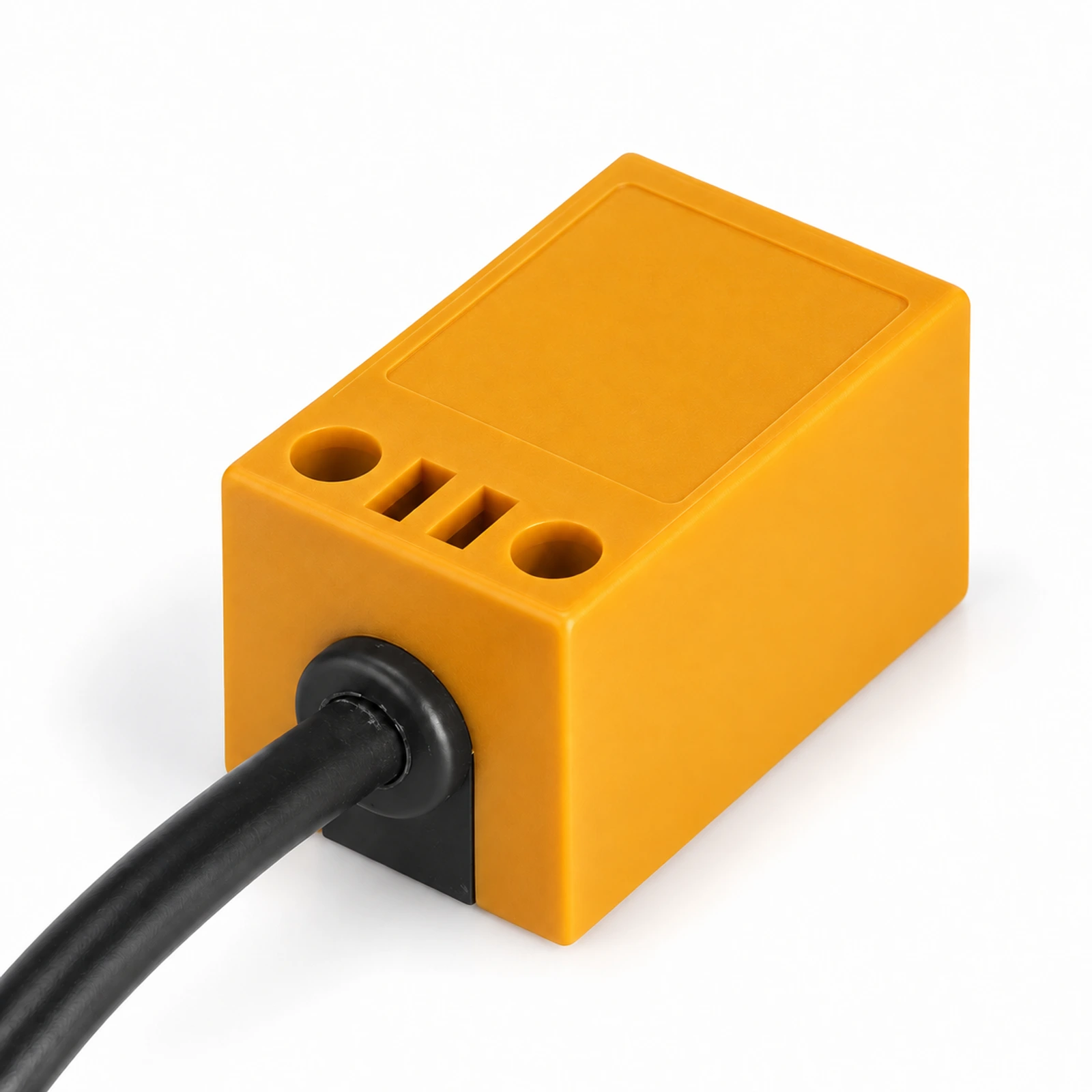

Rectangular Inductive Proximity Sensor – Yellow Housing

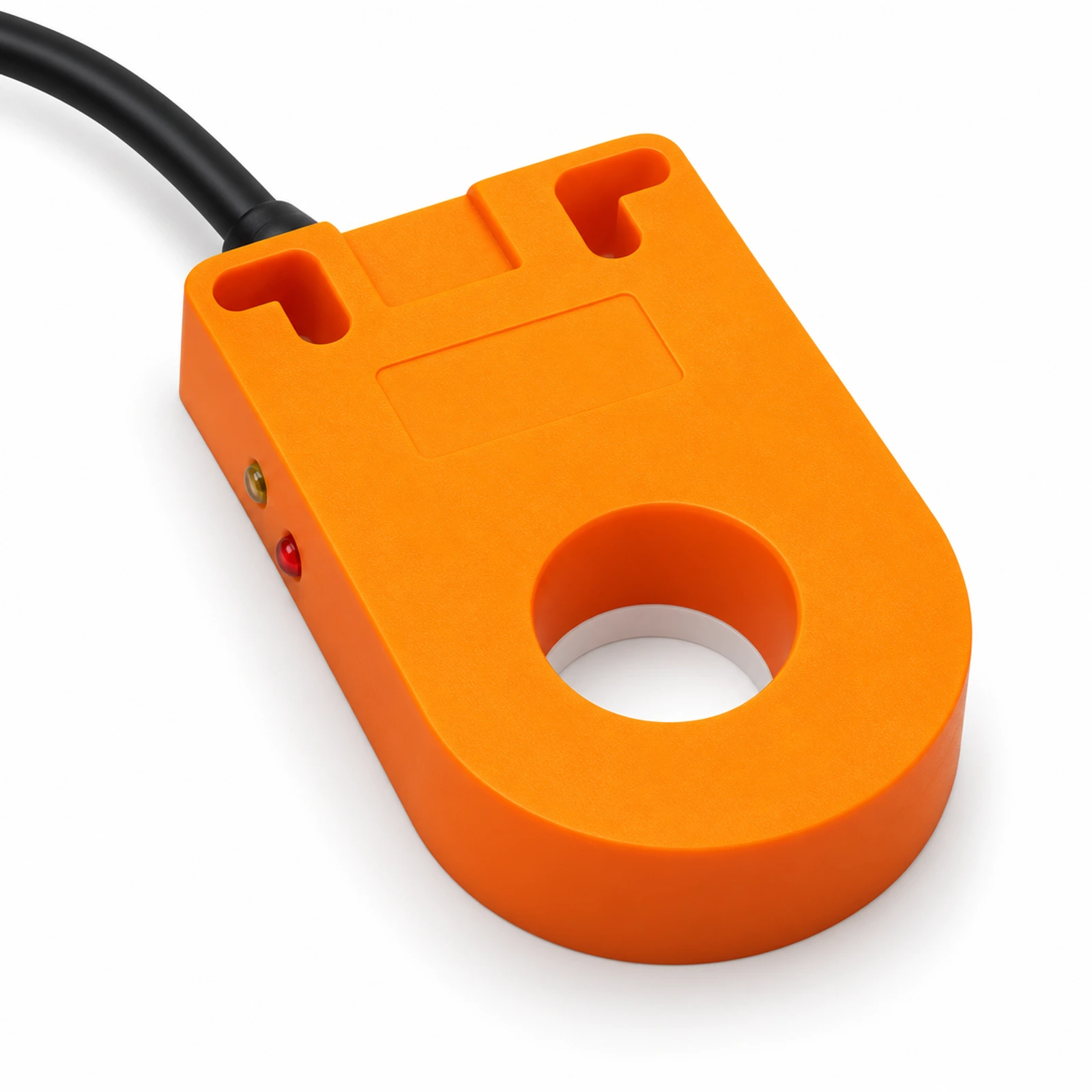

Flat Ring-Type Inductive Proximity Sensor

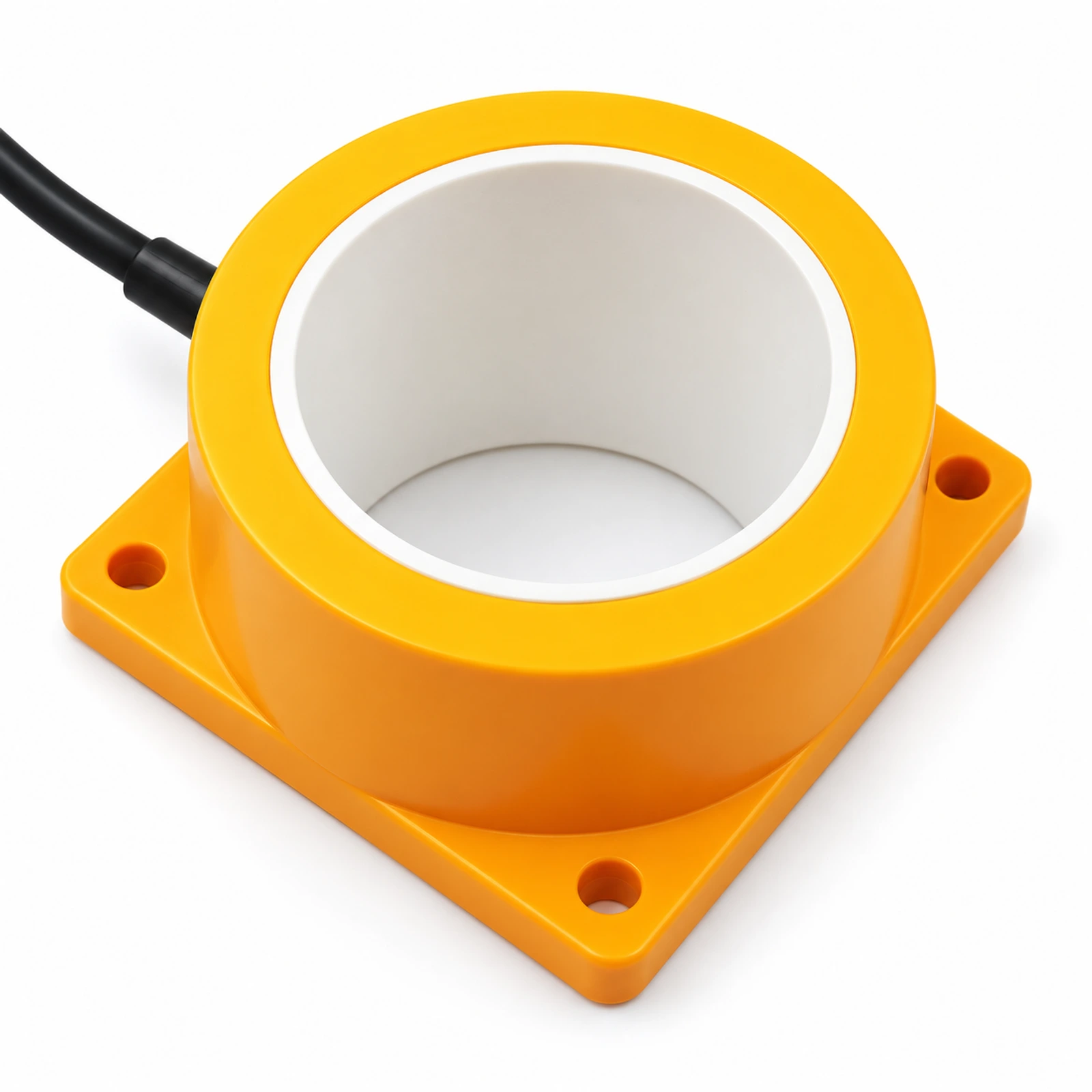

Large Ring-Type Inductive Proximity Sensor – White Sleeve

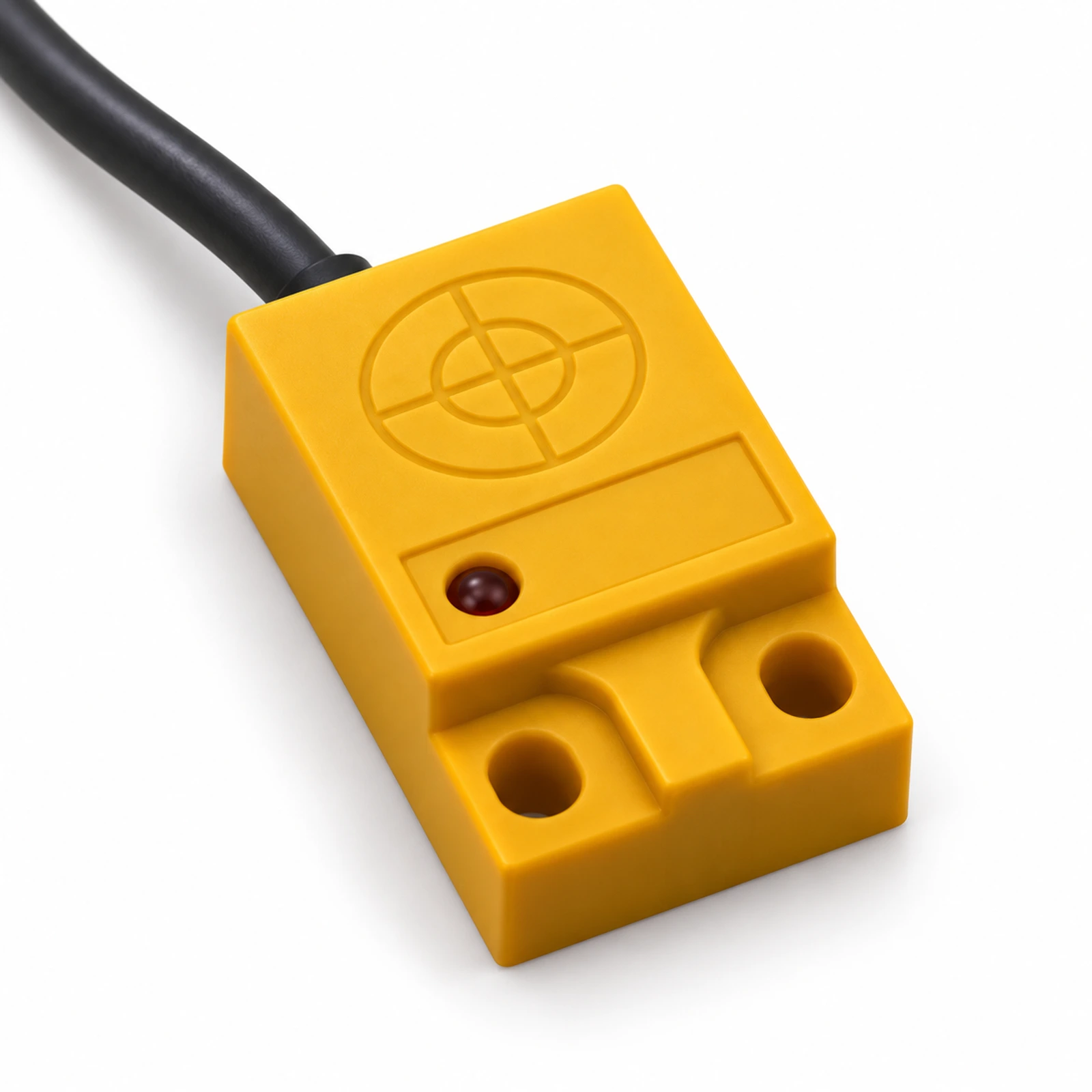

Compact Inductive Proximity Sensor – Yellow Housing

Applications

Metal component presence detection

Discuss detection of a metal part at a machine station. Include target material, dimensions and the required switching position.

Positioning

Review position checks using a metal target. Share mounting space, required repeatability and surrounding metal structures.

Packaging machinery

Discuss metal component position or presence checks inside a packaging machine. Provide the detection point and controller requirements.

Metal part counting

For ring-type detection, share bore clearance, part dimensions, spacing and passage speed. Confirm detection characteristics and response time for the selected model.

Conveyor mechanism monitoring

Review metal targets on stops, guides or moving mechanisms. Provide the mounting gap and operating conditions so suitability can be assessed.

Available Options

Sensing distance & ring bore

Provide the required sensing distance or ring bore clearance. Include metal target material and size; confirm actual detection performance for the selected model.

NPN / PNP output

Specify the output required by your PLC or controller. Available outputs depend on the exact model; request its wiring diagram.

NO / NC switching

Tell us whether normally open (NO) or normally closed (NC) operation is required. Confirm the selected model’s available switching behavior.

3-wire / 4-wire

Provide the required wire configuration and controller connection. Confirm a compatible model and pin assignment.

Cable / connector

Request a cable or connector connection and share cable length or connector details. Confirm availability before ordering.

DC supply voltage

Provide your required DC voltage. Confirm the recommended model’s rated operating voltage and electrical limits.

Confirm target material, sensing distance, ring bore, mounting dimensions and electrical specifications for the exact model before ordering. Housing appearance does not establish detection performance or a particular output configuration.

Need help selecting a sensor?

Please send us your required sensing distance, output type, voltage, wiring, quantity and product photo/reference model. We will recommend a suitable model. Please also include the metal target material, dimensions and required ring bore or mounting gap.
