Magnetic Proximity Sensors

KALEN Automation offers magnetic proximity sensors in cylindrical, rectangular and compact housing styles for magnetic position detection in industrial automation. Choose a housing that fits your mounting space, magnet travel path and machine layout. We can review different sensing distances and discuss NPN / PNP outputs, NO / NC switching, 3-wire / 4-wire configurations, cable or connector connections and DC supply requirements where supported by the selected model. To select a magnetic position sensor, share the magnet type, dimensions, orientation and mounting gap, together with the required switching position. For packaging machinery, actuator position checks or moving-part monitoring, include the motion speed and controller connection. This information helps us assess the sensor and magnet arrangement before recommending a model. OEM/ODM enquiries are welcome for machine builders and distributors. Send your product photo or reference model, required specifications and quantity so we can discuss a suitable magnetic sensing solution and customization scope.

REQUEST A QUOTE

Explore the range

Explore nine housing styles. Contact us to confirm dimensions, compatible magnets and electrical specifications for your application.

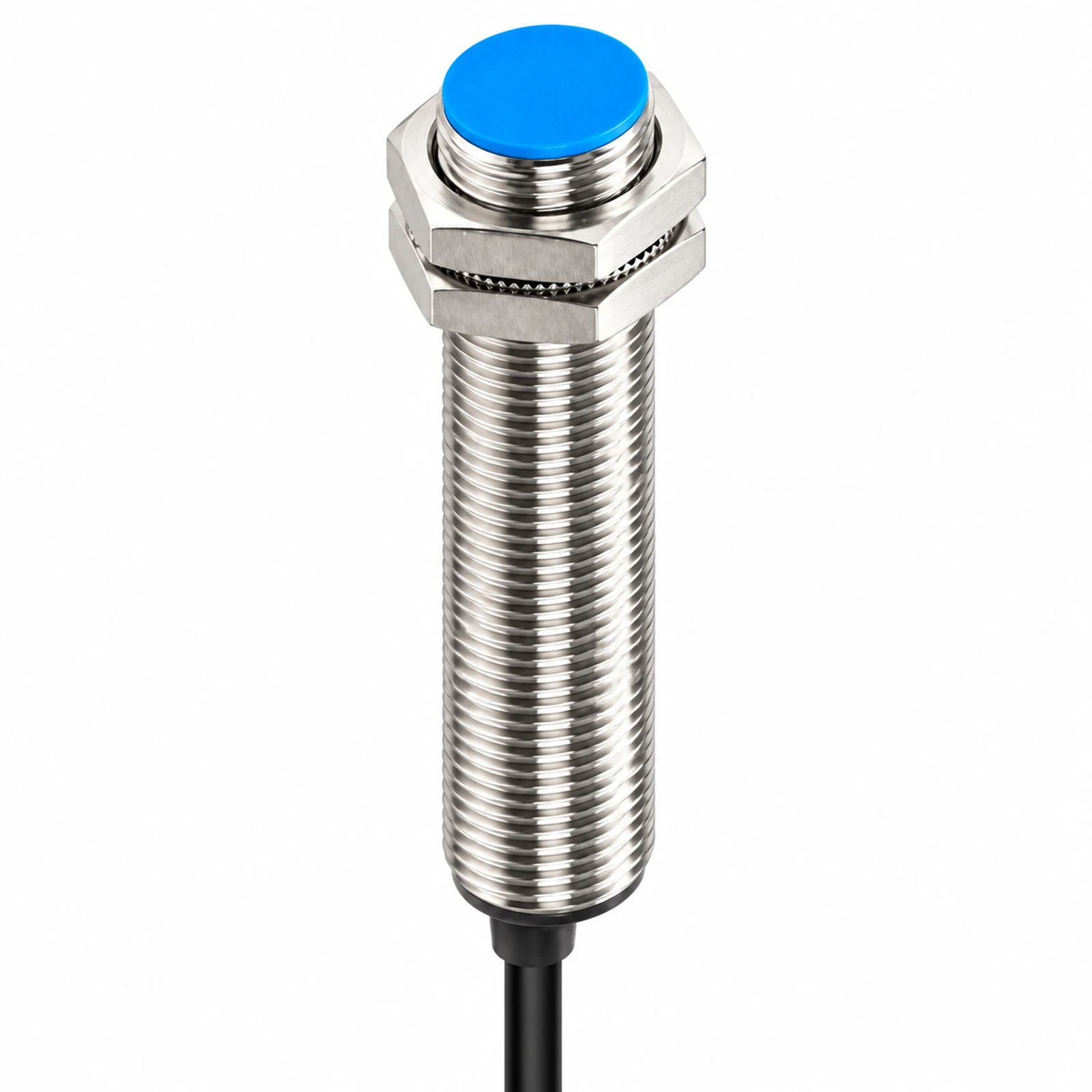

Large Cylindrical Magnetic Proximity Sensor

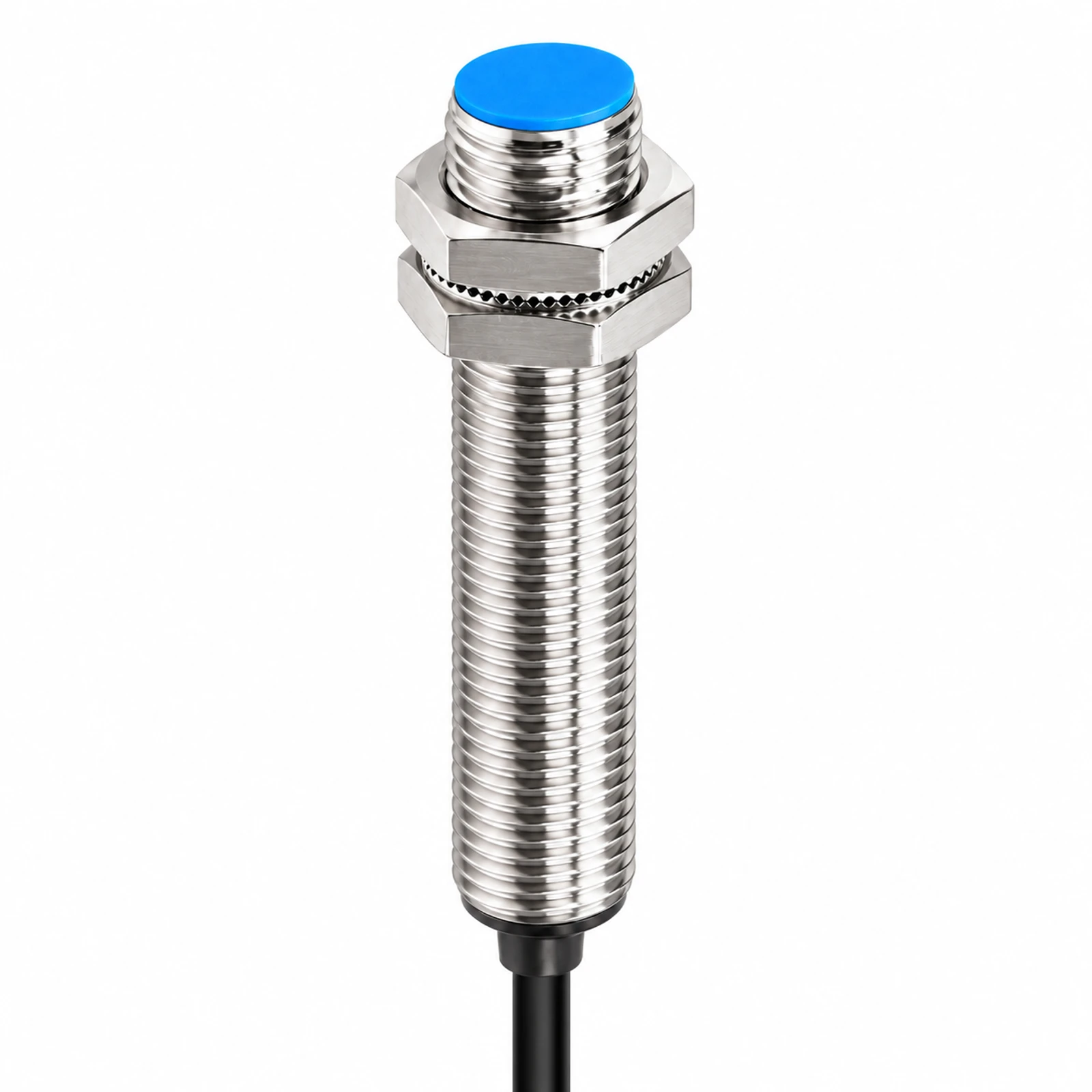

Cylindrical Magnetic Proximity Sensor – Medium Housing

Slim Cylindrical Magnetic Proximity Sensor

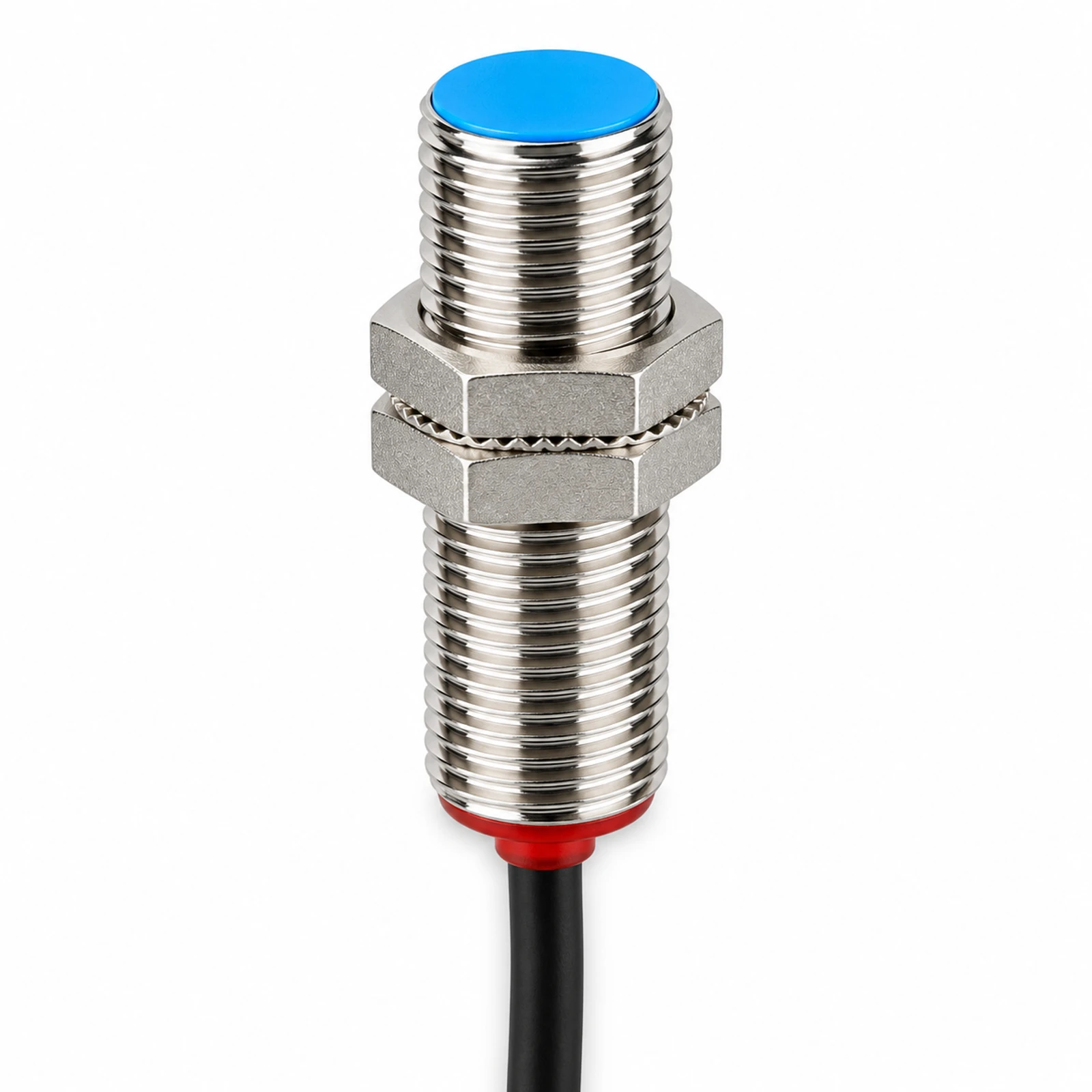

Cylindrical Magnetic Proximity Sensor – Red Cable Gland

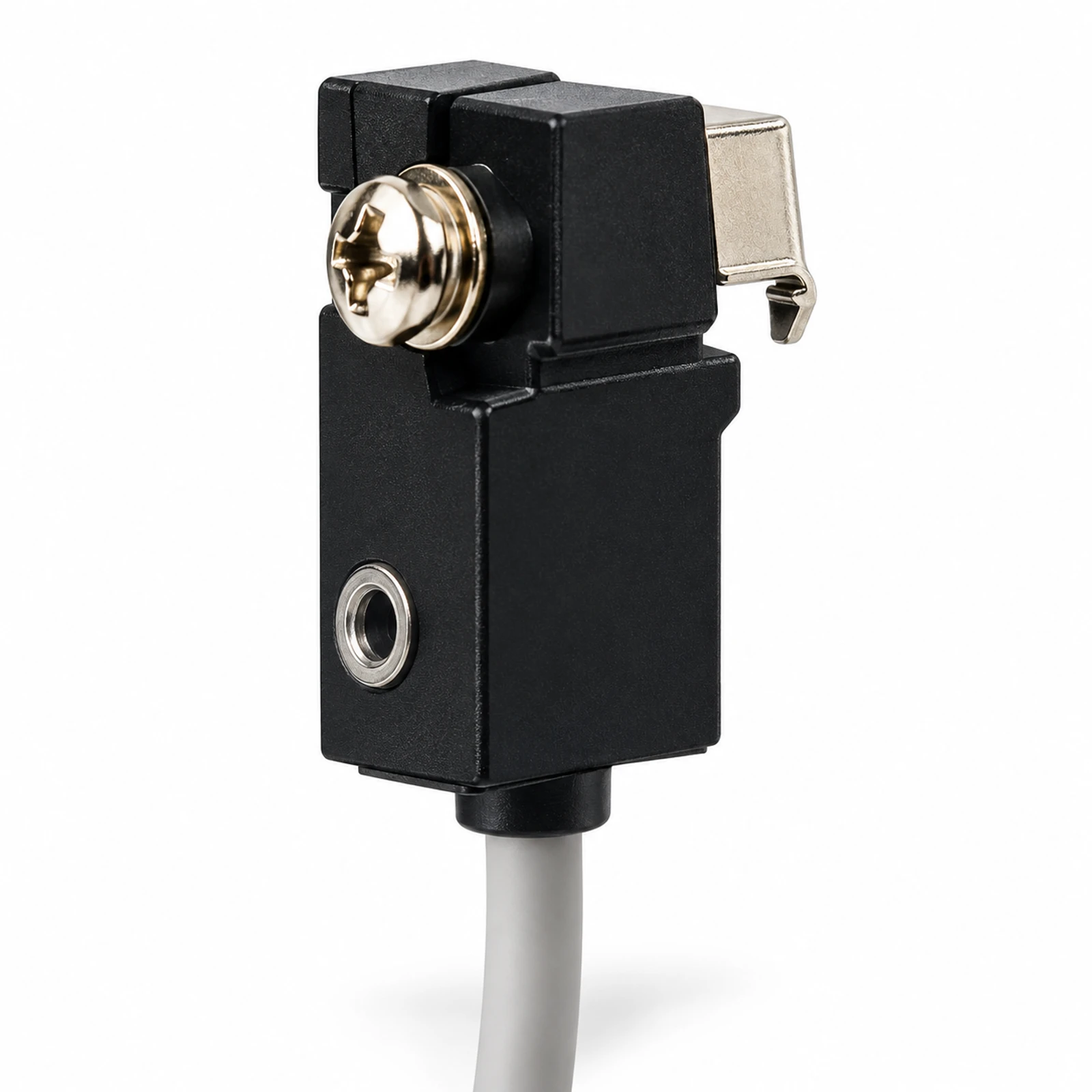

Compact Magnetic Proximity Sensor with Mounting Bracket

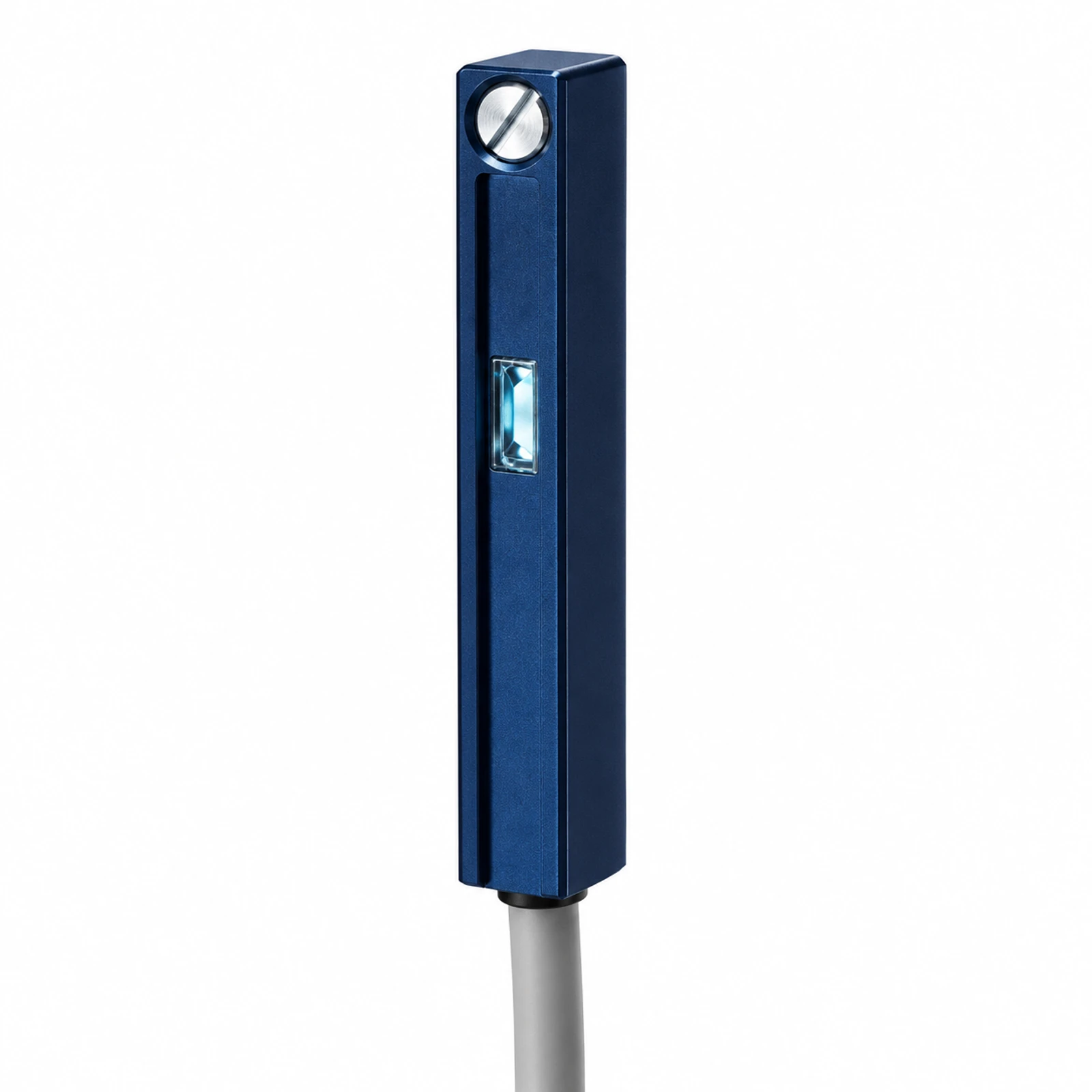

Slim Rectangular Magnetic Proximity Sensor

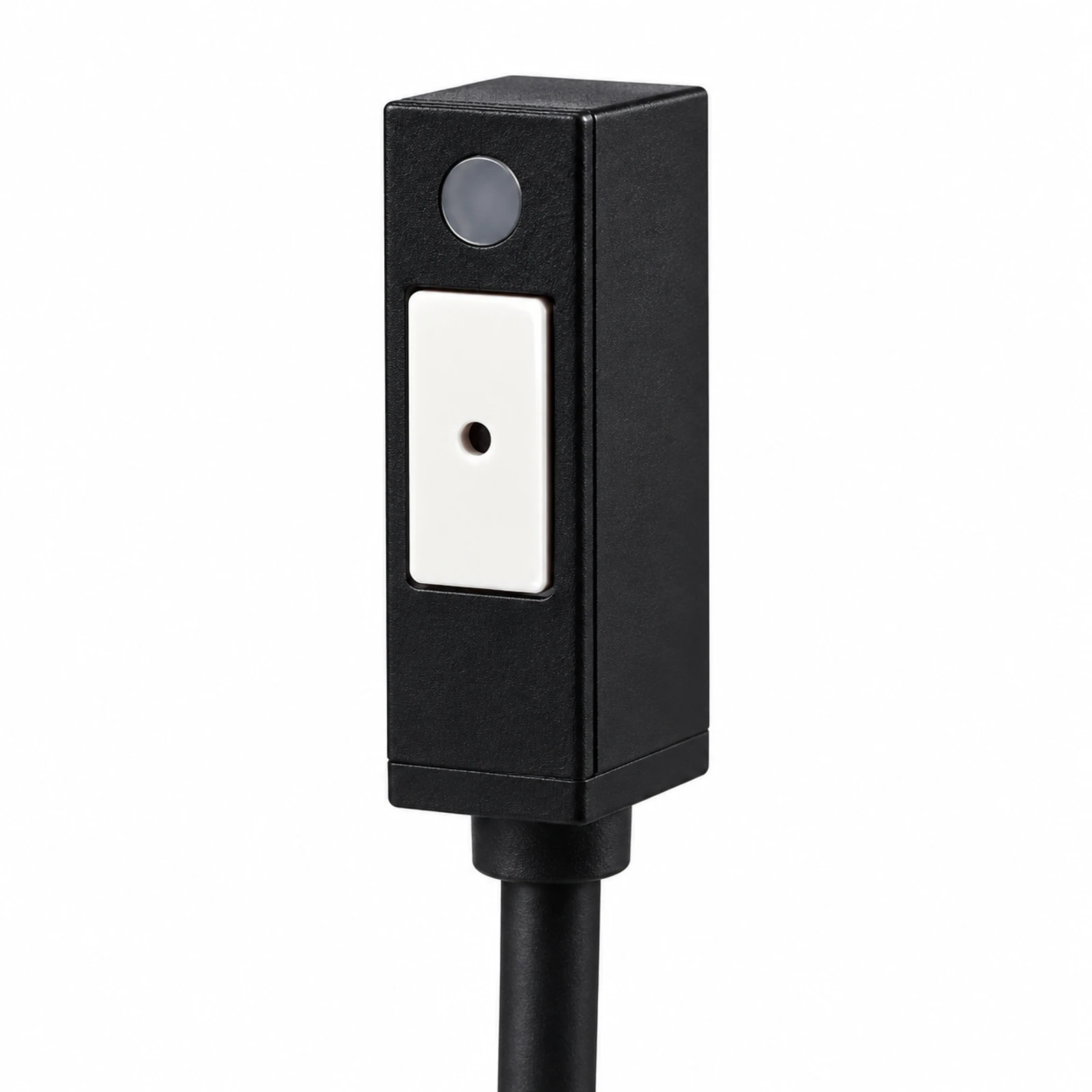

Rectangular Magnetic Proximity Sensor – Black Housing

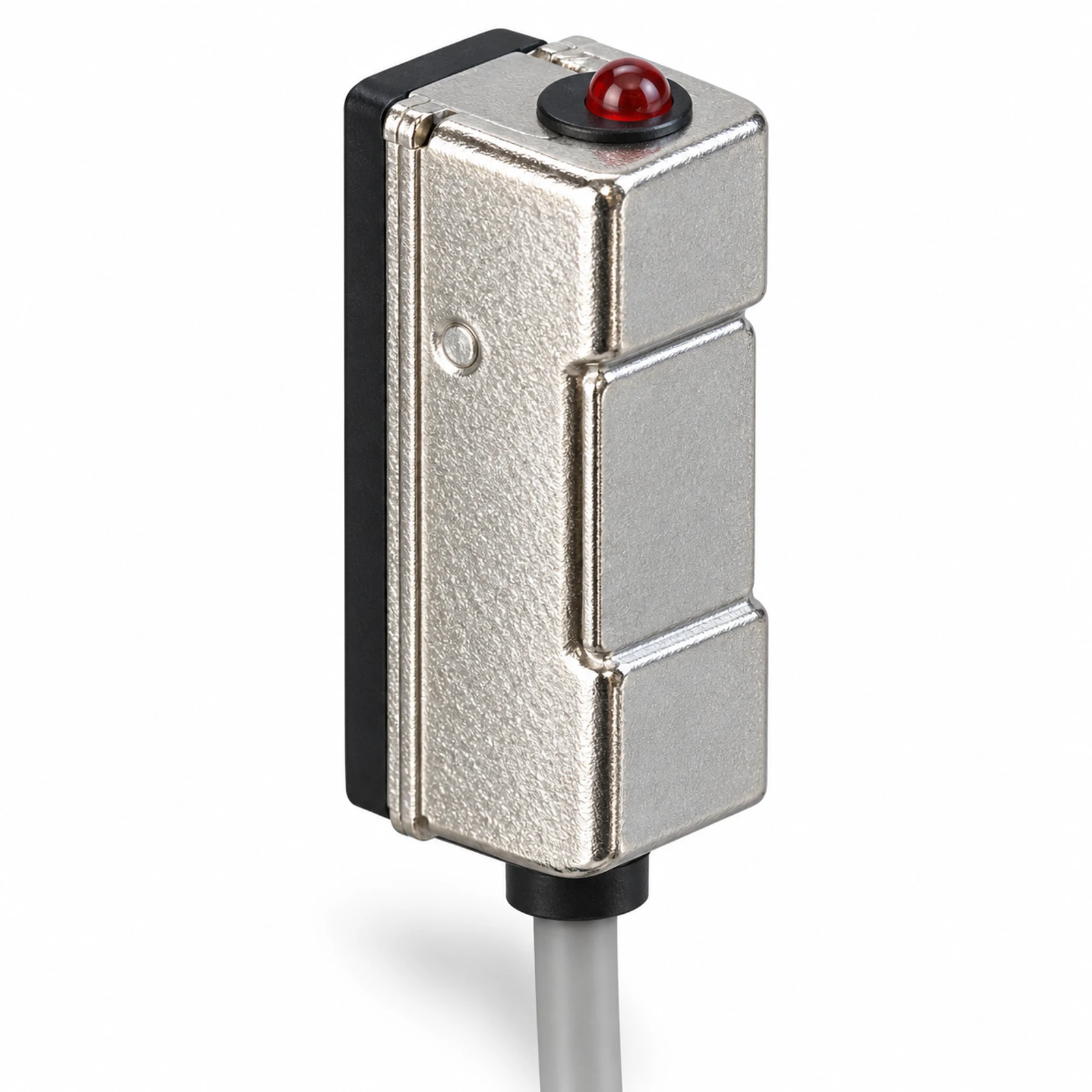

Metal Housing Magnetic Proximity Sensor – End Indicator

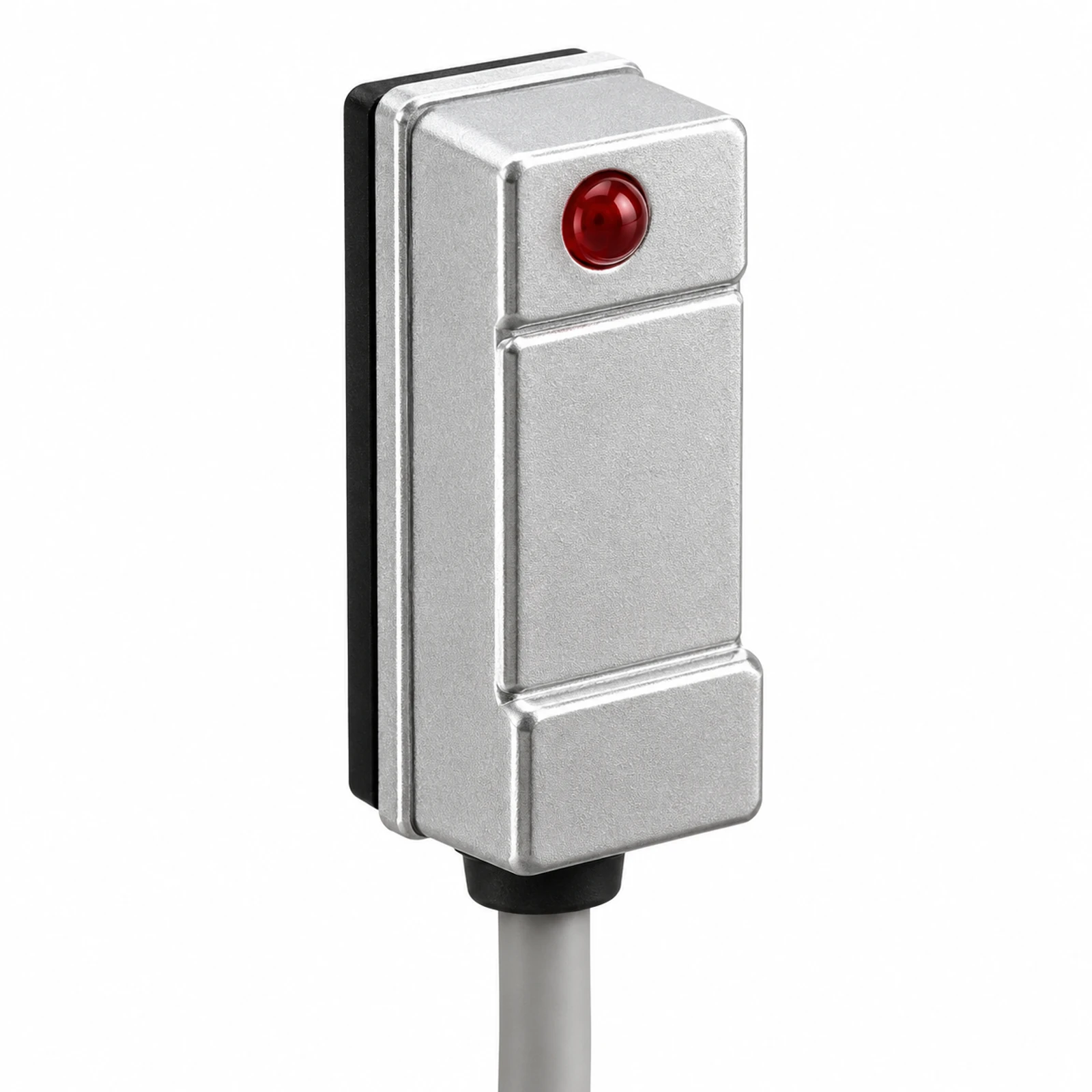

Metal Housing Magnetic Proximity Sensor – Top Indicator

Applications

Magnetic position detection

Discuss position checks using a moving magnet. Provide magnet orientation, travel path and the required switching position.

Actuator position monitoring

For an actuator application, share the magnet arrangement and mounting space. Confirm compatibility with the actuator and selected sensor.

Packaging machinery

Review position feedback for a moving machine component carrying a magnet. Include motion speed and controller requirements.

Conveyor mechanism positioning

Discuss a magnetic target on a stop, guide or moving mechanism. Provide the mounting gap and repeatability requirements.

Counting & motion monitoring

For repeated magnet passage, share travel speed and spacing. Confirm response time, switching behavior and controller compatibility for the exact model.

Available Options

Magnet & sensing distance

Provide the magnet type, dimensions and orientation, plus the required sensing distance. Confirm the switching gap for the actual sensor and magnet combination.

NPN / PNP output

Specify the output required by your PLC or controller. NPN/PNP availability depends on the selected model; request its wiring diagram.

NO / NC switching

Tell us whether normally open (NO) or normally closed (NC) operation is needed. Confirm available switching configurations for the selected model.

3-wire / 4-wire

Share your required wire configuration and controller connection. These configurations are model dependent; ask us to confirm a compatible sensor.

Cable / connector

Request a cable or connector connection and provide cable length or connector details. Confirm availability before ordering.

DC supply voltage

Provide your required DC voltage. Confirm the recommended model’s rated operating voltage, output and electrical limits.

Confirm dimensions, compatible magnets, switching distance and electrical specifications for the exact model. Housing photographs do not establish thread size or a particular output configuration.

Need help selecting a sensor?

Please send us your required sensing distance, output type, voltage, wiring, quantity and product photo/reference model. We will recommend a suitable model. Please also include the magnet type, orientation and installation gap.
